© 06/2006 8231-001
7/10
TCD 2015 Railway
Lube oil system
W 08-04-07
6

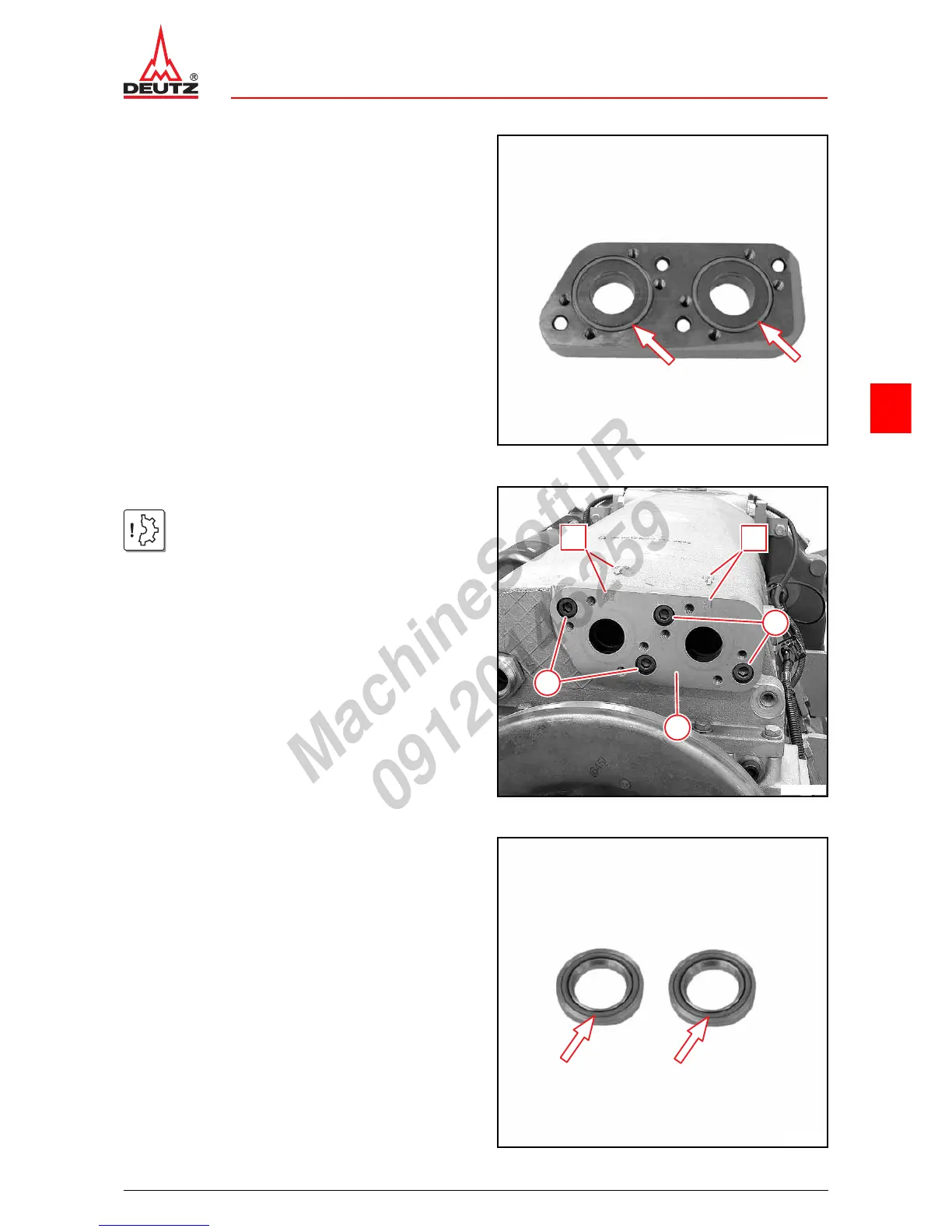

z Insert new O-rings (arrows).
z Coat the O-rings with fitting compound.
© 37110-1
z Mount connecting flange (2).
z Tighten screws (1).
A03 035
Attention!
The labels “IN“ and “EX“ on the connecting
flange and the lubricating oil pan must
match.
IN
EX
1
2
1
© 42448-1
z Insert new O-rings (arrows).
z Coat the O-rings with fitting compound.
© 37112-1
