Deutz TCD 2015 - Page 596

TCD 2015 Railway
Lube oil system
W 08-04-07
© 06/2006 8231-001
8/10
6

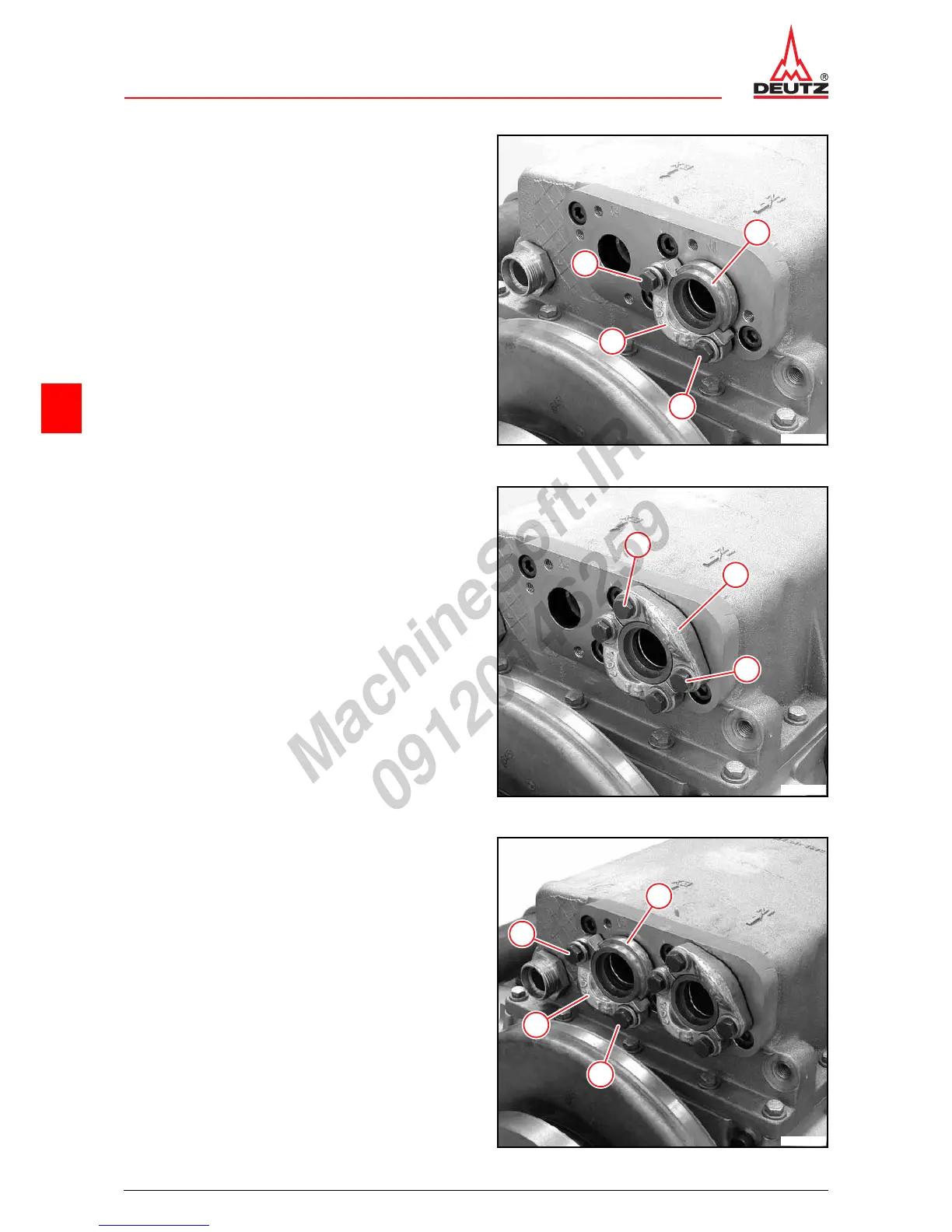

z Mount half-flange (1).
z Mount washers.
z Tighten screws (2).
z Insert flanged socket (3).
1
2
2
3
© 45870-0
z Mount half-flange (1).
z Mount washers.
z Tighten screws (2).
1
2
2
© 45871-0
z Mount half-flange (1).
z Mount washers.
z Tighten screws (2).
z Insert flanged socket (2).
z Align both flanged sockets centrally.
z Tighten all screws.
 A03 034
3
2
1
2
© 45872-0
