Deutz TCD 2015 - Page 655

© 06/2006 8244-001
3/20
TCD 2015
Electrical system
W 13-01-02
6

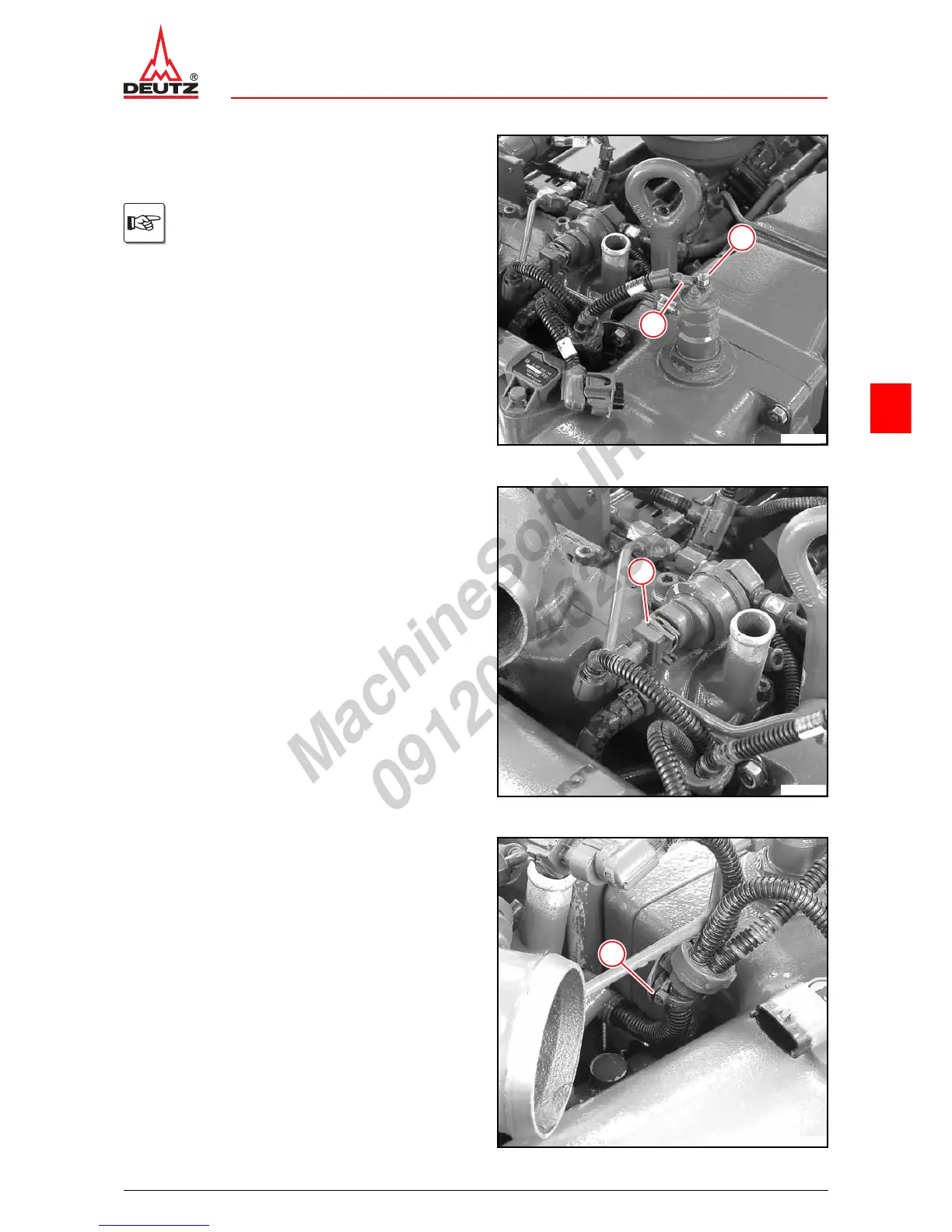

z Unscrew nut (1).
z Remove washer.
z Remove cables (2).
Mark assignment of cables/connections
before removing.
1
2
© 40920-0
z Unlock cable plug (1) and remove.
1
© 40921-0
z Remove cable tie (1).
1
© 40922-0
