Deutz TCD 2015 - Page 656

TCD 2015
Electrical system
W 13-01-02
© 06/2006 8244-001
4/20
6

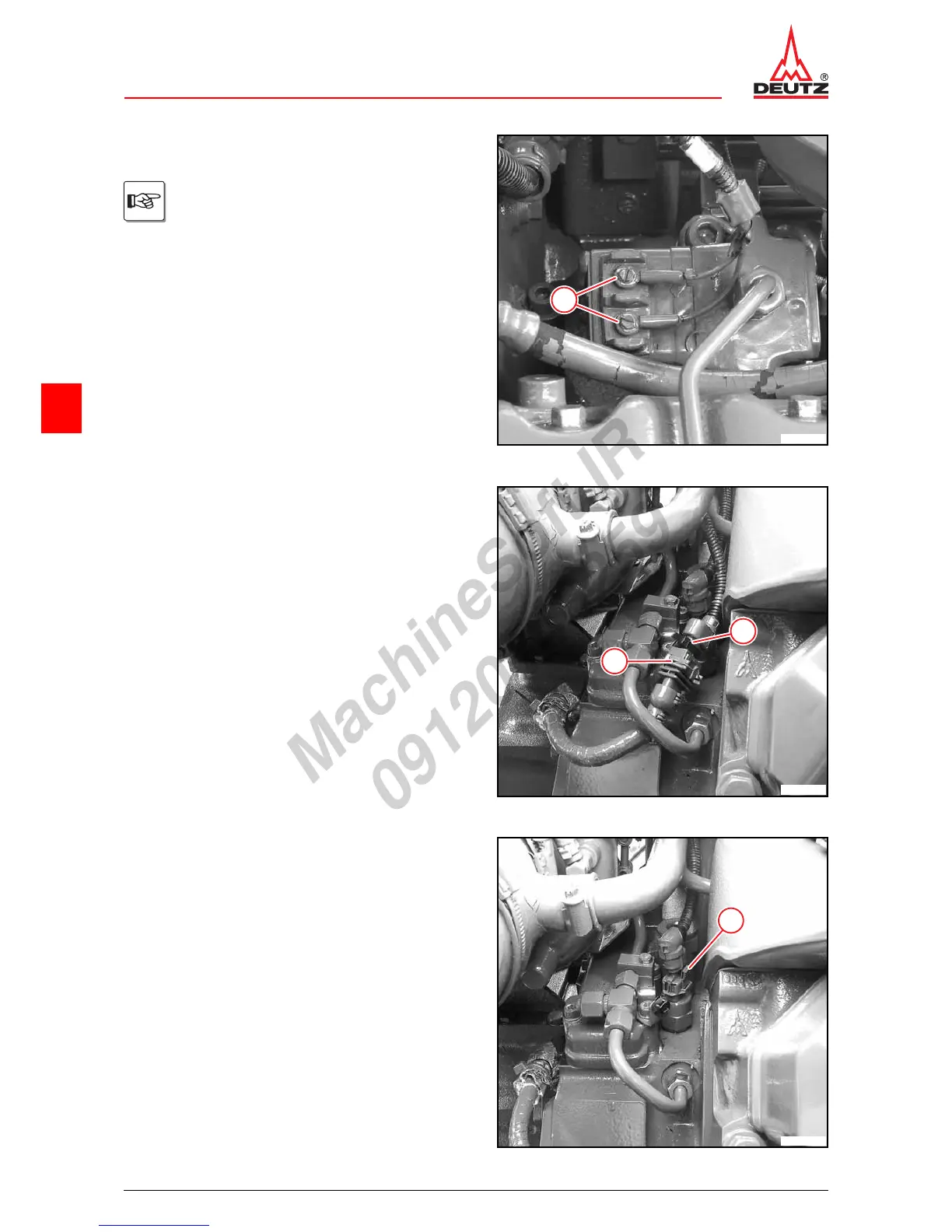

z Loosen screws (1).
z Pull cables off all injection pumps.
Mark assignment of cables/connections
before removing.
1
© 40923-0
z Remove cable tie (1).
z Unlock cable plug (2) and disconnect.
2
1
© 40924-0
z Unlock cable plug (1) and remove.
1
© 40925-0
