Electrical system
W 13-01-02
6

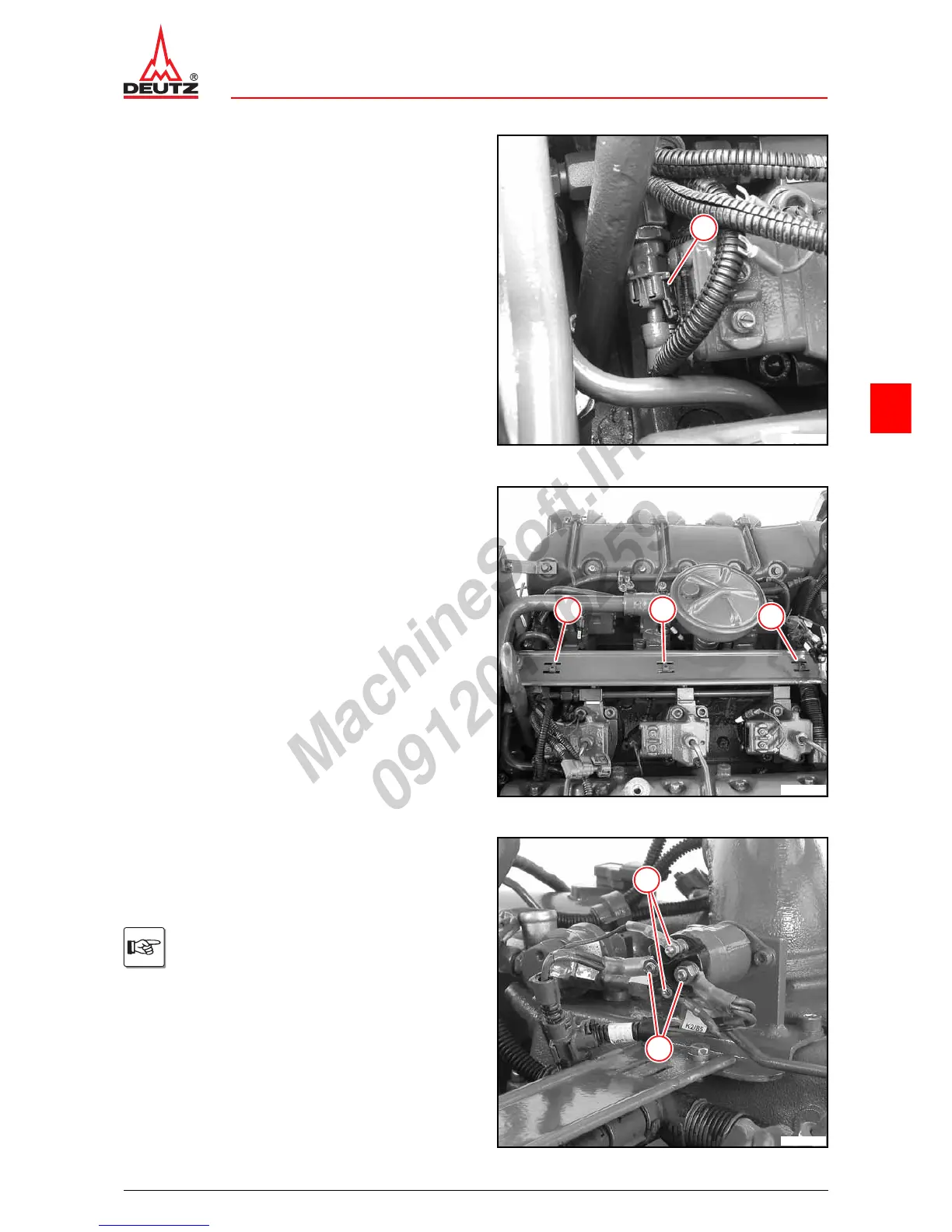

z Unlock cable plug (1) and remove.
1
© 40926-0
z Remove cable tie (1).
1
1
1
© 40927-0
z Unscrew nuts (1).
z Unscrew the nuts (2).
z Remove washers.
z Remove cables.
Mark assignment of cables/connections
before removing.
