Deutz TCD 2015 - Page 658

TCD 2015
Electrical system
W 13-01-02
© 06/2006 8244-001
6/20
6

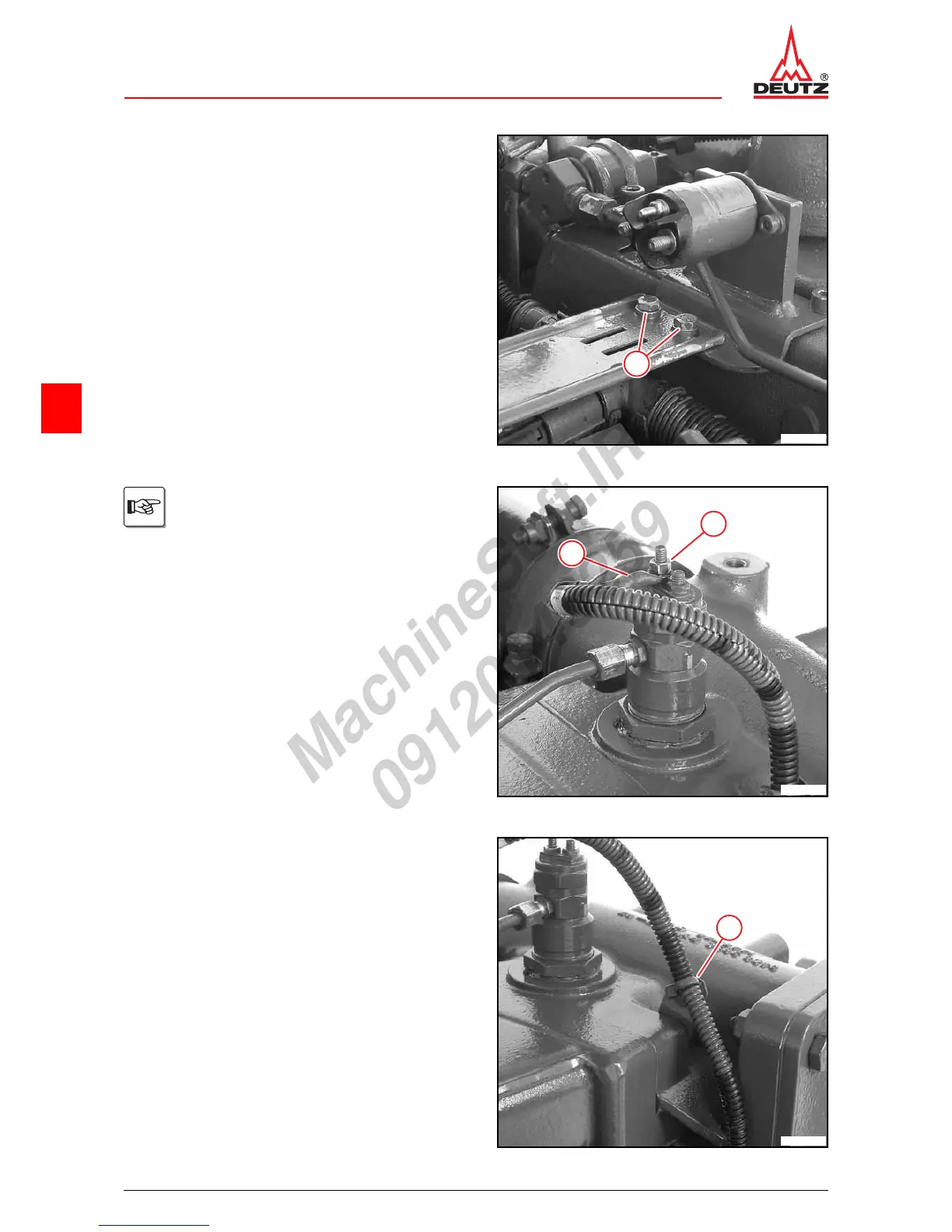

z Unscrew screws (1).
1
© 40929-0
z Unscrew nut (1).
z Remove washer.
z Remove cables (2).
Mark assignment of cables/connections
before removing.
1
2
© 40930-0
z Remove cable tie (1).
1
© 40931-0
