TCD 2015
Electrical system
W 13-02-03
6

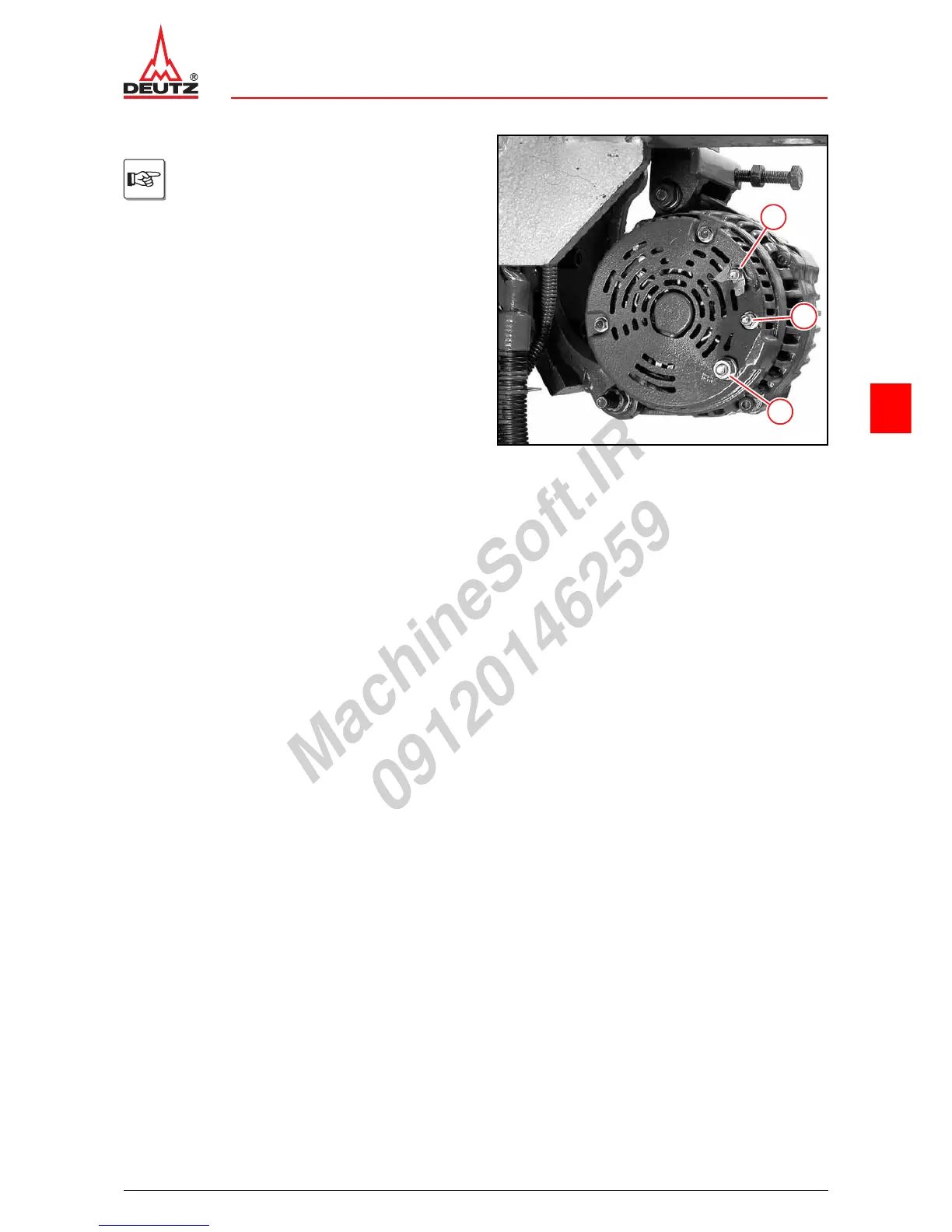

z Remove cable from generator.
z Connect the battery's negative terminal.
Note assignment!
- (1) = terminal W
- (2) = terminal D+
- (3) = terminal B+
1
2
3
