100 Upgrade and Maintenance Manual
RX2520 M4
6.1.1 PSU configurations

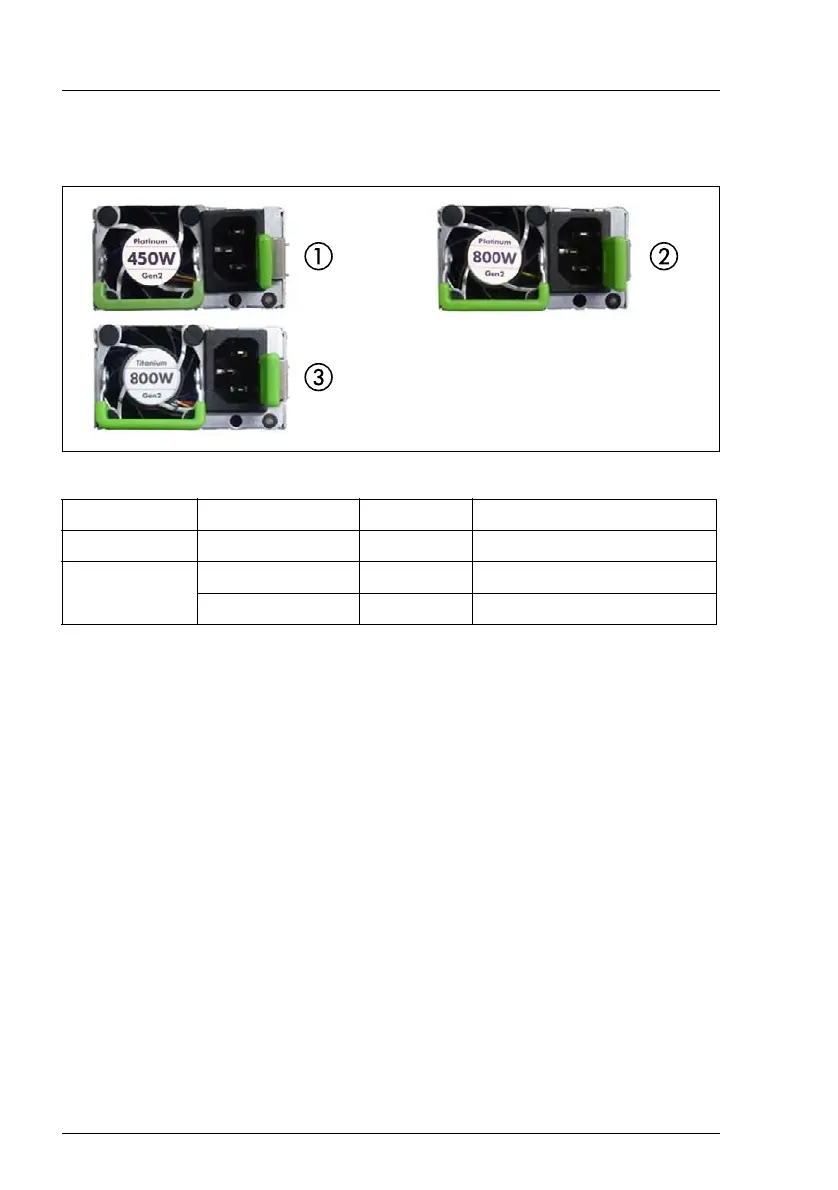

Figure 18: Example types of PSUs
I All different PSUs can be installed, removed or replaced in the same way.
6.1.2 Assembly rules
– Mixed assembly of PSUs from different power classes (e.g. class 1 or
class 2) within a system is not supported.
– Mixing of Platinum and Titanium PSUs within same class (e.g. class 2) within
a system is not supported.
– Mixing of Platinum PSUs within same class and different manufacturer
(e.g. class 1) within a system is supported.
– Always install a dummy cover into an unused PSU bay to comply with
applicable EMC regulations and satisfy cooling requirements.
– For a redundant power supply configuration you need always two PSUs with
the same power class.
Power class Number in figure Power Item
1 1 450 W AC Platinum
2
2 800 W AC Platinum
3 800 W AC Titanium
