RX2520 M4
Upgrade and Maintenance Manual 103
Power supply unit (PSU)
6.2.1.3 Installing a PSU

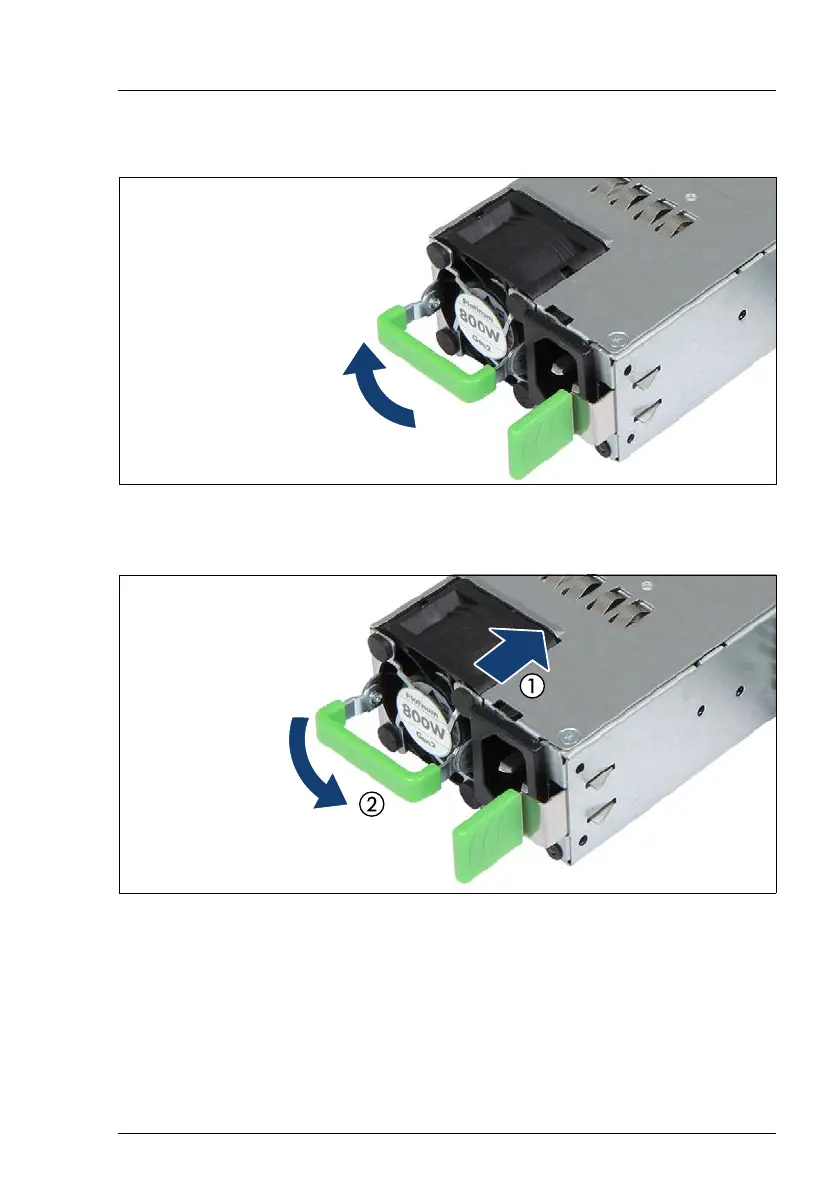

Figure 21: Folding up the handle
Ê Push the handle of the PSU halfway upward in the direction of the arrow.
Figure 22: Installing the PSU
Ê Push the PSU into its bay (1) as far as it will go until the release latch snaps
in place.
Ê Fold down the handle on the PSU (2).
I Make sure that the PSU engages correctly in the bay and is locked in
position. This is the only way to prevent the PSU from sliding out of its
bay and being damaged during transportation.
