RX2520 M4
Upgrade and Maintenance Manual
269
Accessible drives
12.2.1.3
Installing the ODD

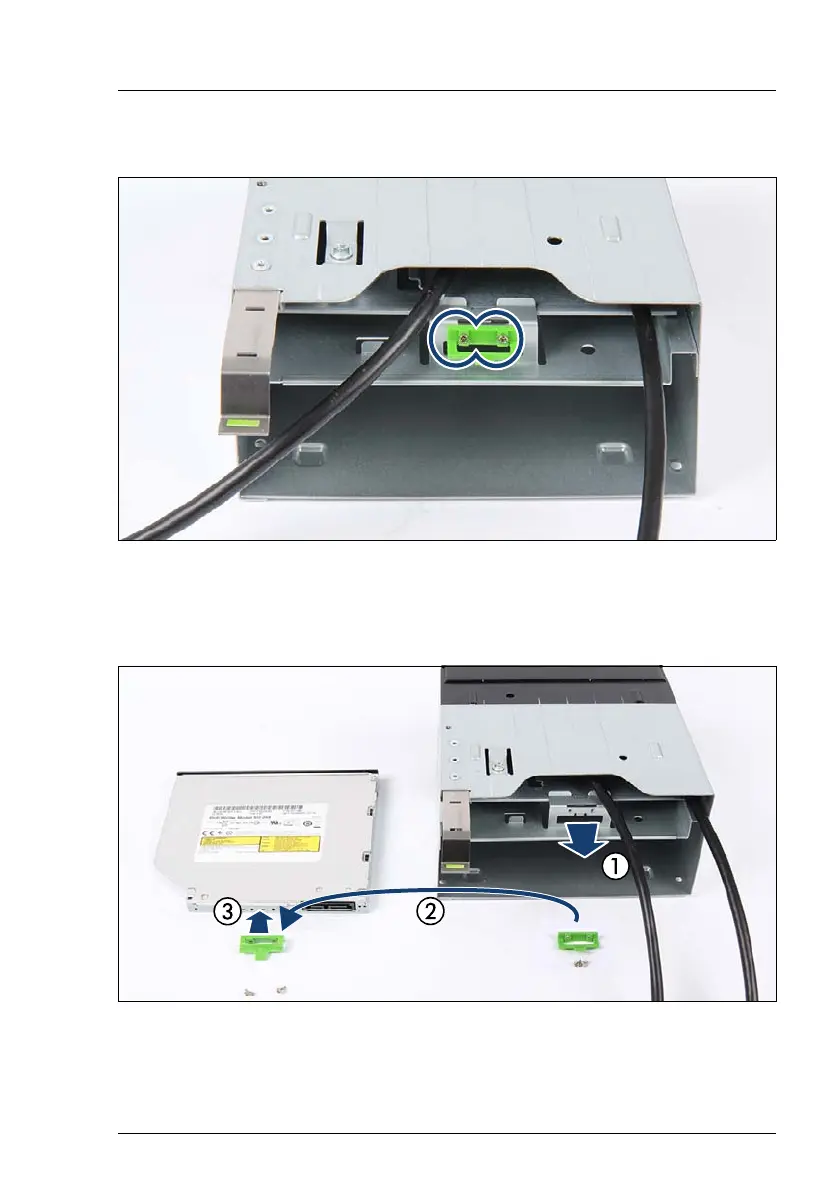

Figure 165: Remove the ODD latch
Ê
Remove the two screws (see circles).
Ê
Remove the ODD latch from the front panel module.
Figure 166: Installing the ODD l
atch
Ê
T
ur
n the ODD latch 180
o
(2)
.
Ê
Attach the ODD latch to rear side of ODD (3).
268
270
