340
Upgrade and Maintenanc
e Manual
RX2520
M4
Serial interface
14.1.2
Breaking out the met
al cover

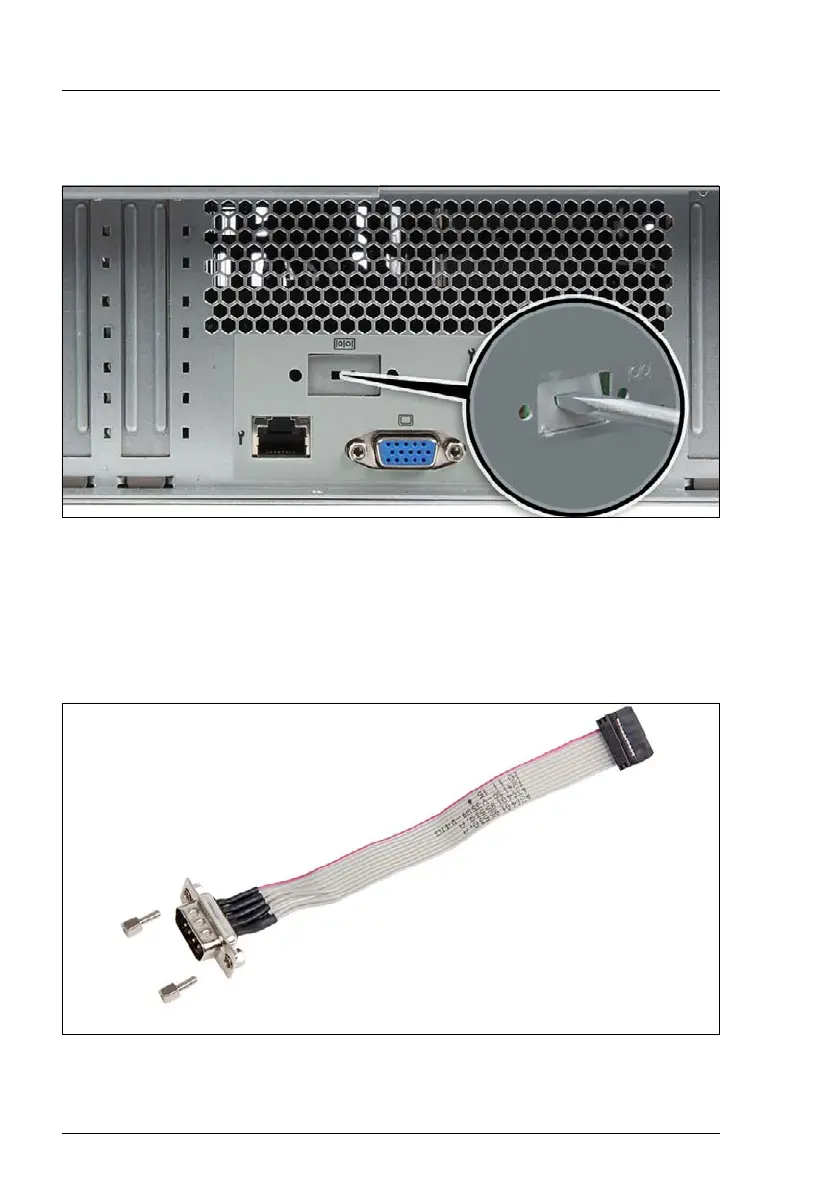

Figure 239: Removing the metal
cover
Ê
T
wist and break off the metal
cover
. Use a flat screw driver to break off the
metal cover (see close-up).
14.1.3
Insta
lling the serial interf
ace
Figure 240: Removing the bolt
s from the serial interface
Ê
Remove the two hexagon bolts.
339
341
