294 Upgrade and Maintenance Manual
RX2520 M4
12.4.2 Removing a LTO drive
12.4.2.1 Preliminary steps
Ê Ask the system administrator to eject all remaining backup or optical media
from the backup or ODD before removing it from the server.
Ê "Suspending BitLocker functionality" on page 67
Ê "Shutting down the server" on page 48
Ê "Disconnecting the power cord" on page 49
Ê "Getting access to the component" on page 50
Ê "Removing the fan holder" on page 63
12.4.2.2 Removing the LTO drive

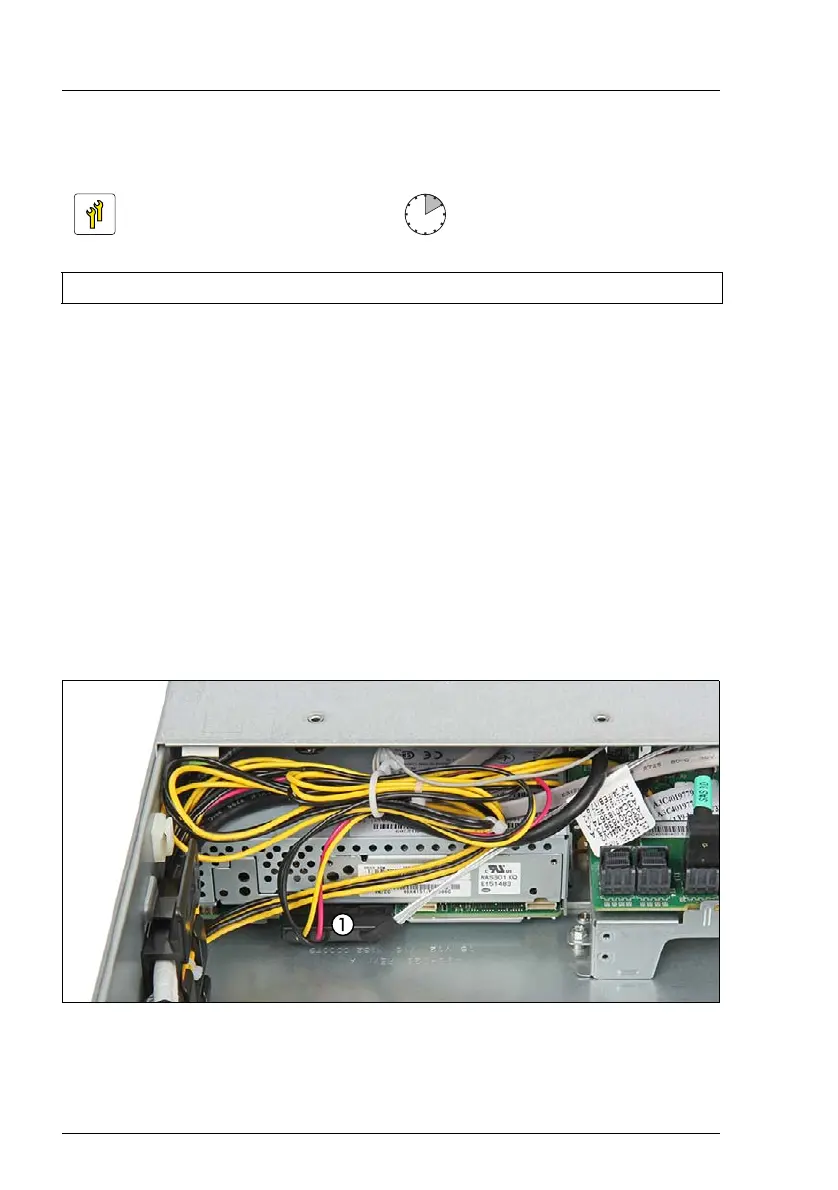

Figure 196: Disconnecting the cable from the LTO drive
Ê Disconnect the LTO PWR/SAS cable C38 from the LTO drive (1).
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
