RX2520 M4
Upgrade and Maintenance Manual 153
Hard disk drive (HDD) and solid state drive (SSD)
Ê Remove the two screws (see circles).
Ê Push the SAS expander board holder towards and take it out of the chassis
(see blue arrow).
7.3.12.3 Removing the SAS expander board

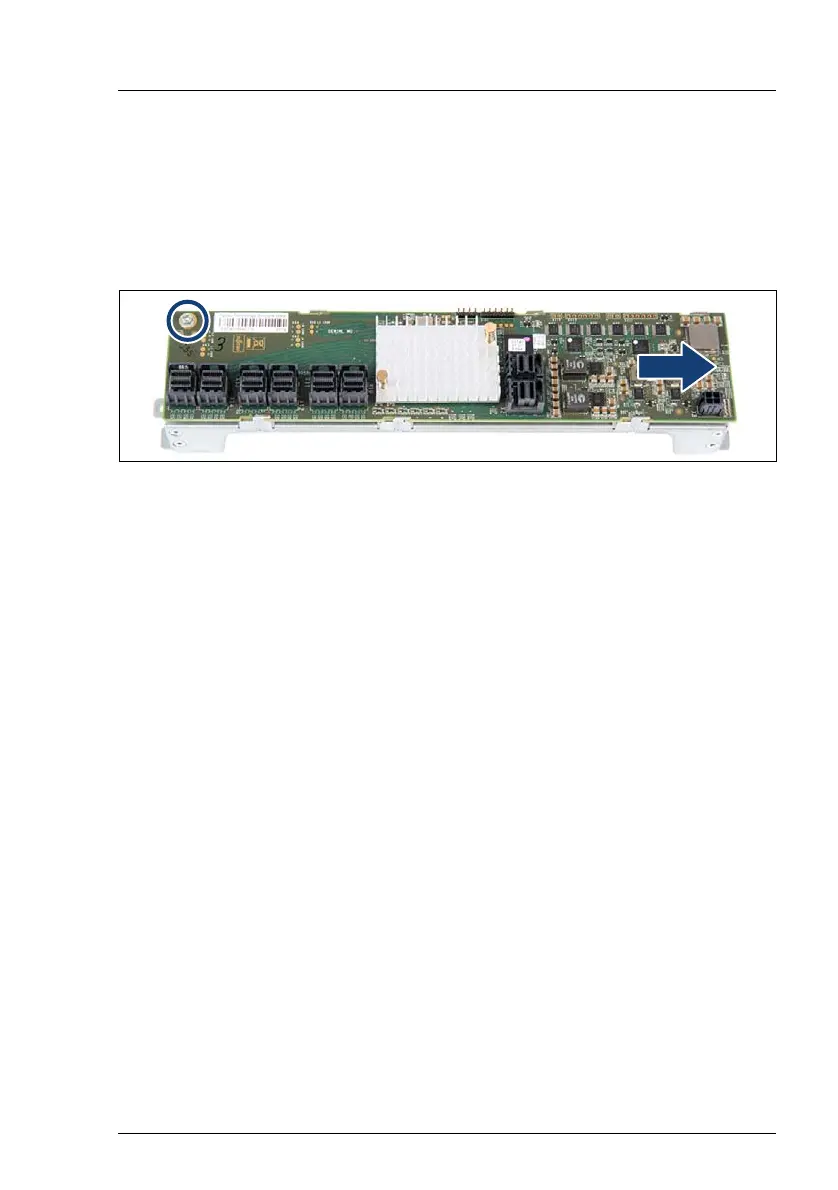

Figure 61: Removing the SAS expander board
Ê Remove one screw (see circle).
Ê Push the SAS expander board in the direction of the arrow.
Ê Take off the SAS expander board from the SAS expander board holder.
7.3.12.4 Concluding steps
Ê "Installing the fan holder" on page 64
Ê "Installing the air duct" on page 62
Ê "Reassembling" on page 55
Ê "Connecting the power cord" on page 59
Ê "Switching on the server" on page 60
Ê "Resuming BitLocker functionality" on page 89
