RX2520 M4
Upgrade and Maintenance Manual 107
6.2.2.3 Removing a PSU
Ê Remove the power cord from the PSU, see section "Disconnecting the
power cord" on page 49.

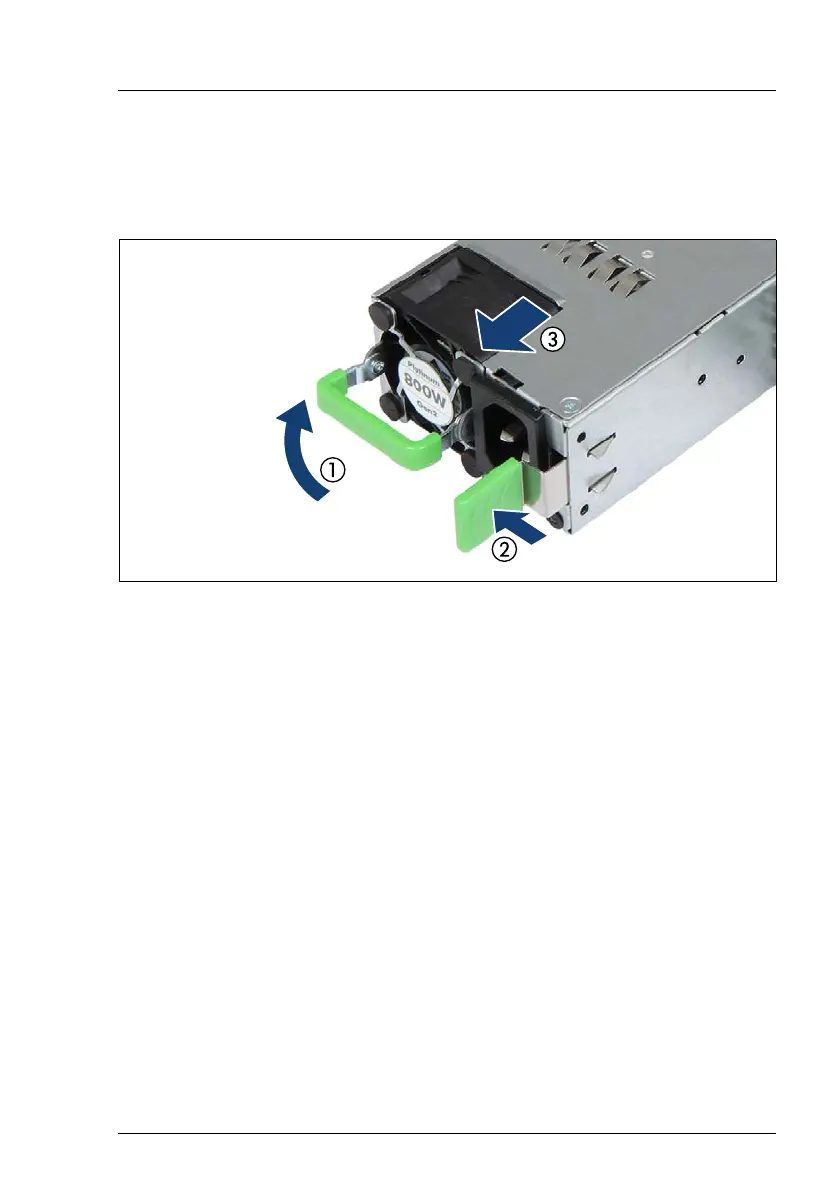

Figure 27: Unlocking and removing the PSU
Ê Push the handle of the PSU halfway upward in the direction of the arrow (1).
Ê Push the lock in direction of the arrow (2).
Ê Grip the handle and pull out the PSU in the direction of the arrow (3).
V CAUTION!
Never leave the bay for the PSU empty for more than two minutes during
operation. Otherwise, excessive temperatures could damage system
components.
