308 Upgrade and Maintenance Manual
RX2520 M4
12.5.2.3 Inserting the air grid

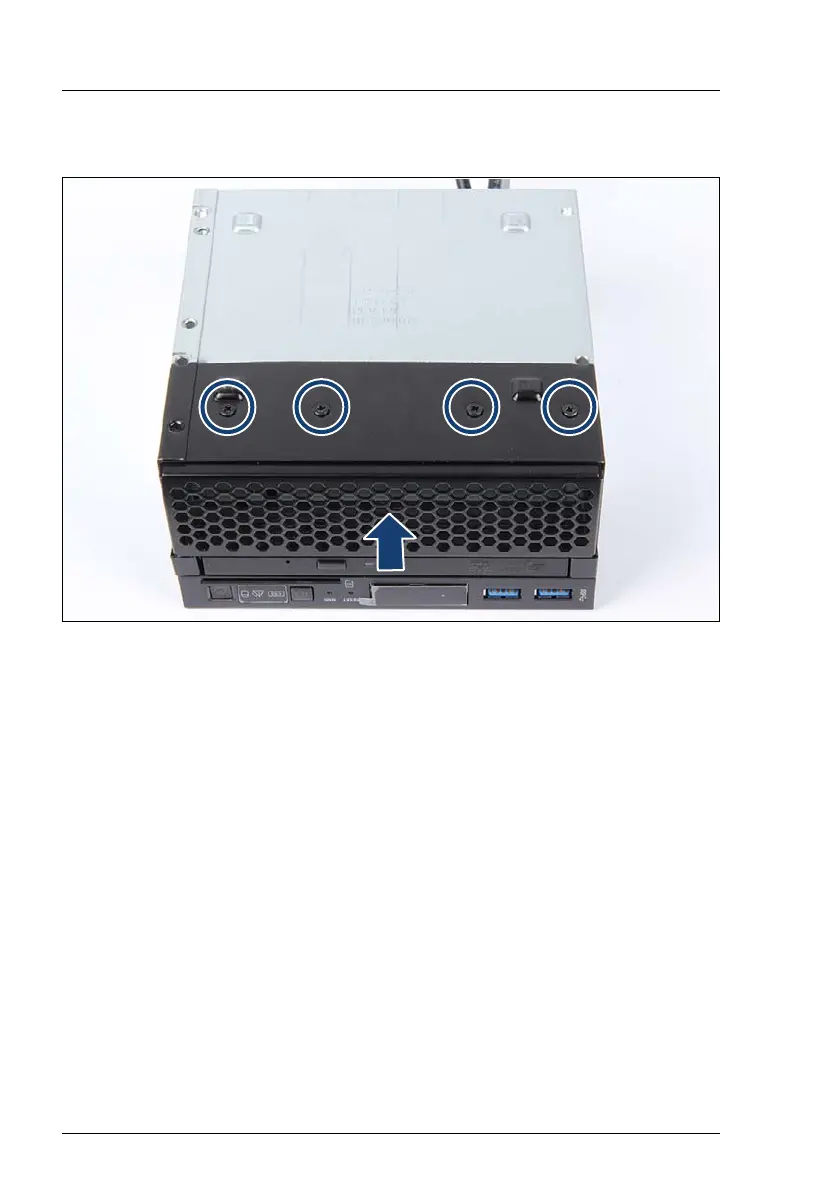

Figure 209: Inserting the air grid
Ê Insert the air grid.
Ê Fasten the air grid with 4 screws.
12.5.2.4 Concluding steps
Ê "Installing the front panel cage" on page 319.
Ê "Installing the fan holder" on page 64
Ê "Reassembling" on page 55
Ê "Connecting the power cord" on page 59
Ê "Switching on the server" on page 60
Ê "Resuming BitLocker functionality" on page 89
