302
Upgrade and Maintenanc
e Manual
RX2520
M4
Accessible drives
12.5.1.3
Prepar
ing the RDX drive

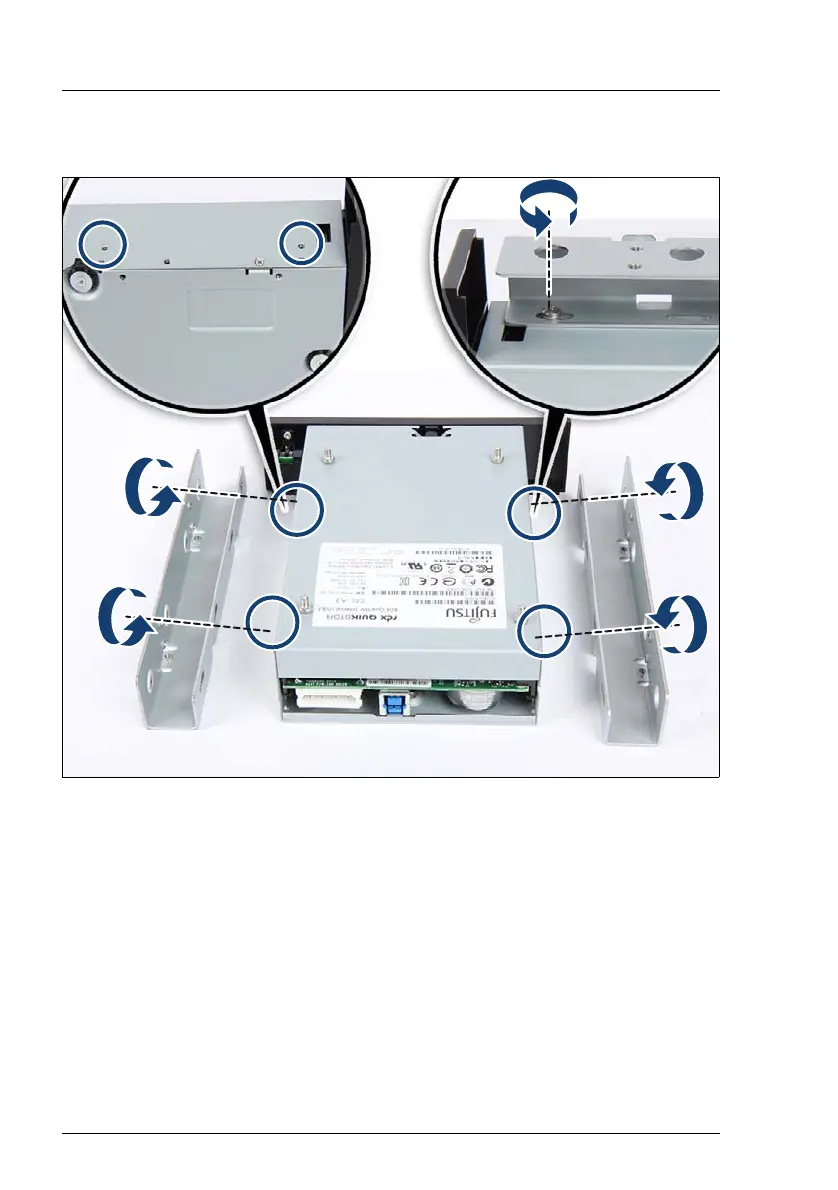

Figure 203: Installing t
he ra
ils to the RDX drive (A)
Ê
Fasten the rails with each two screws (fillister head screw
,M3x 5mm; PZ2,
0.6 Nm; 4 screws are parts
of RDX adapter set) The screws must be fasten
in the middle of the slotted holes.
301
303
