Fujitsu PRIMERGY RX2520 M4 Upgrade And Maintenance Manual

36RX2520 M4
OOB Cabling 8/12/16x2.5" PCIeSSD

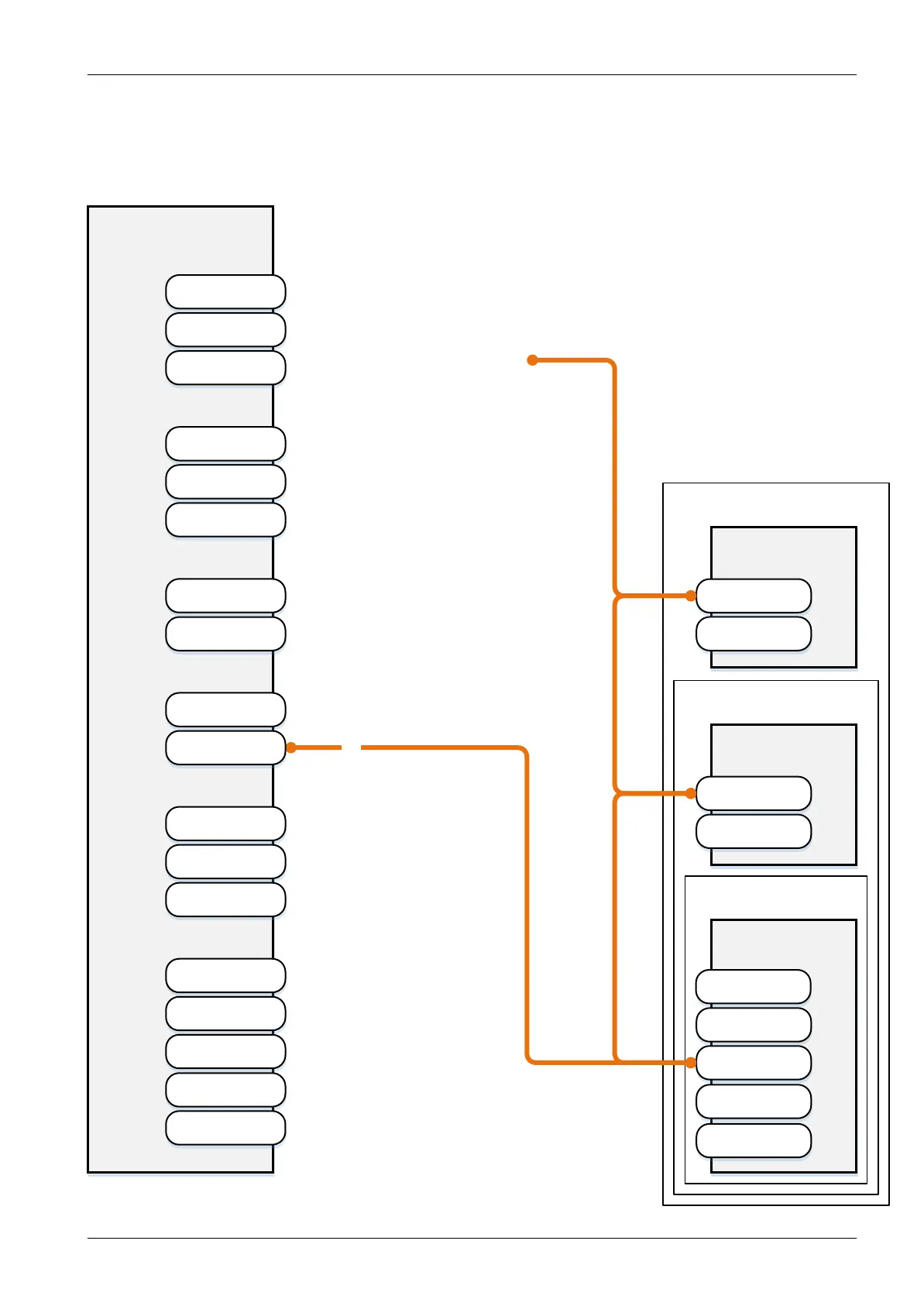

Cable plan
16x2.5" (8x2.5" + 8x2.5")
12x2.5" (8x2.5" + 4x2.5")
8x2.5"
X12 (Bpl PWR)
X11 (OOB)
4x 2.5" PCIe
X12 (Bpl PWR)
X11 (OOB)
4x 2.5" PCIe
X11 (OOB)
X40 (Bpl PWR)
8x2.5"
X17 (ODD PWR)
X9 (Data)
X10 (Data)
C7
Systemboard
D3386
USB3.0 FRONT
PWR ODD
PWR4
PWR3
PWR2
FRONTPANEL1
SATA 4-7
PWR EXT
PWR CTRL
PWR MAIN
FP2
SATA ODD
USB 3.0 INT1
COM1
OOB FRONT
SATA 0-3
PWR1
ROC
