Fujitsu PRIMERGY RX2520 M4 Upgrade And Maintenance Manual

192 Upgrade and Maintenance Manual RX2520 M4
Fans
8.2 Replacing a fan module
8.2.1 Preliminary steps
Ê "Locating the defective server" on page 45
Ê "Shutting down the server" on page 48
Ê "Getting access to the component" on page 50
Ê "Locating the defective component" on page 47
Ê "Removing the air duct" on page 61
8.2.2 Removing a defective fan module
Ê Disconnect the corresponding fan cable, see table 3.

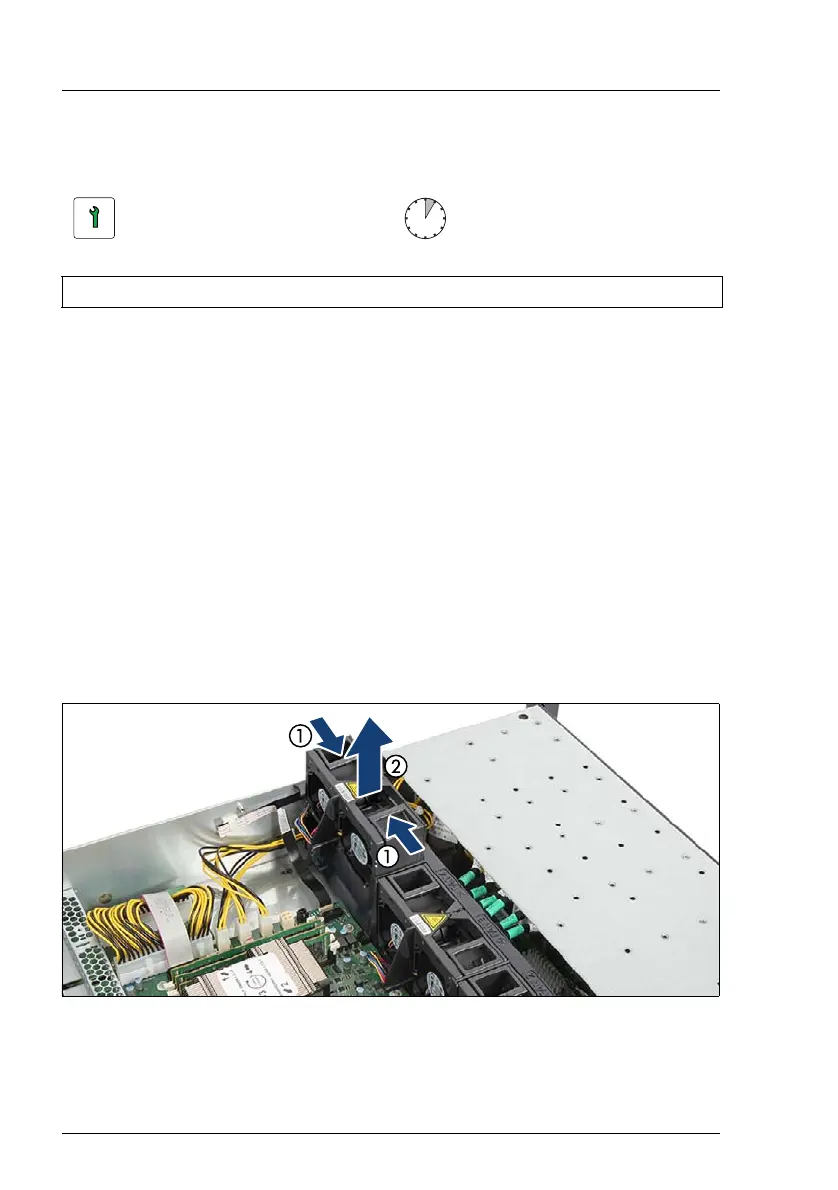

Figure 100: Removing the fan module
Ê Take the fan module by the two handles (1).
Ê Lift the fan module out of the fan holder (2).
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools: tool-less
