290 Upgrade and Maintenance Manual RX2520 M4
Accessible drives
12.4.1.3 Installing the LTO drive

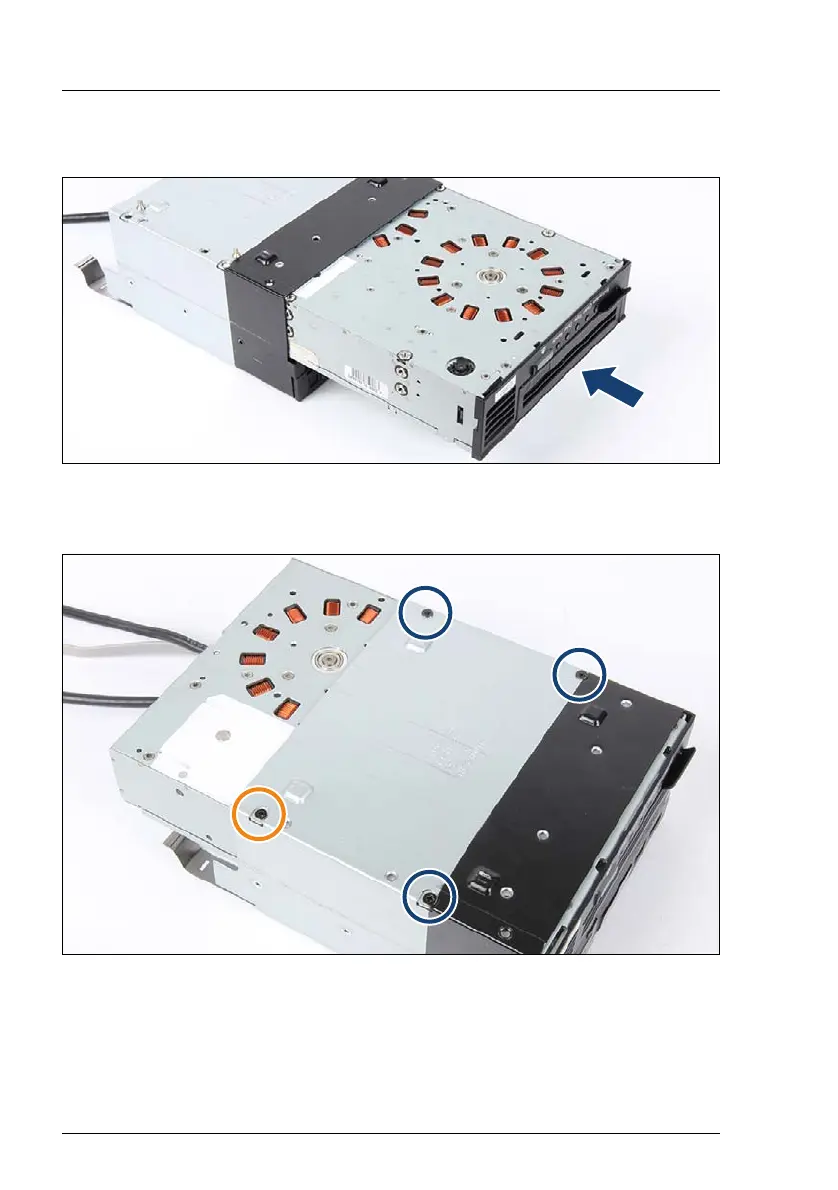

Figure 190: Installing the LTO drive (A)
Ê Push in the LTO drive in the bay.
Figure 191: Installing the LTO drive (B)
Ê In case of an LTO drive with four screw holes (e. g. LTO 5/6), fasten the LTO
drive with four screws (see blue and orange circles).
Ê In case of an LTO drive with three screw holes (e. g. LTO 7), fasten the LTO
drive with three screws (see blue circles).
