RX2520 M4
Upgrade and Maintenance Manual 121
Hard disk drive (HDD) and solid state drive (SSD)
7.2 Handling the HDDs or SSDs without
installation frame
7.2.1 2.5-inch HDD/SSD and 2.5-inch installation frame
Installing a 2.5-inch HDD/SSD in a 2.5-inch installation frame

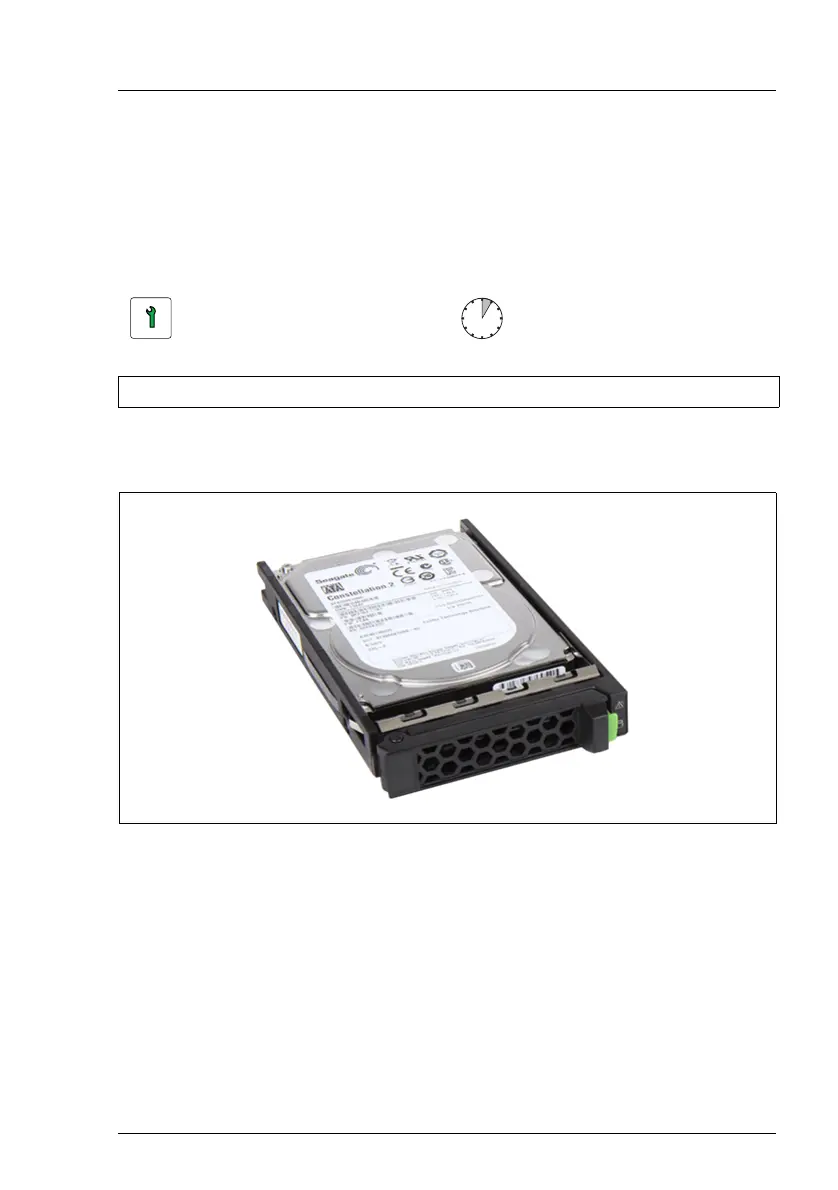

Figure 35: Installing the 2.5-inch HDD/SSD in the 2.5-inch installation frame (A)
Ê Lay the 2.5-inch HDD/SSD into the 2.5-inch HDD installation frame as
shown.
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools: Phillips PH1 / (+) No. 1 screw driver
