130 Upgrade and Maintenance Manual
RX2520 M4
Hard disk drive (HDD) and solid state drive (SSD)
7.3.4 Configuration with additional PCIe-SSDs
I In the configuration with up to 8 HDD/SSD modules, the next four HDD
bays can be equipped with PCIe-SSDs, if one PCIe Retimer controller
has been installed.

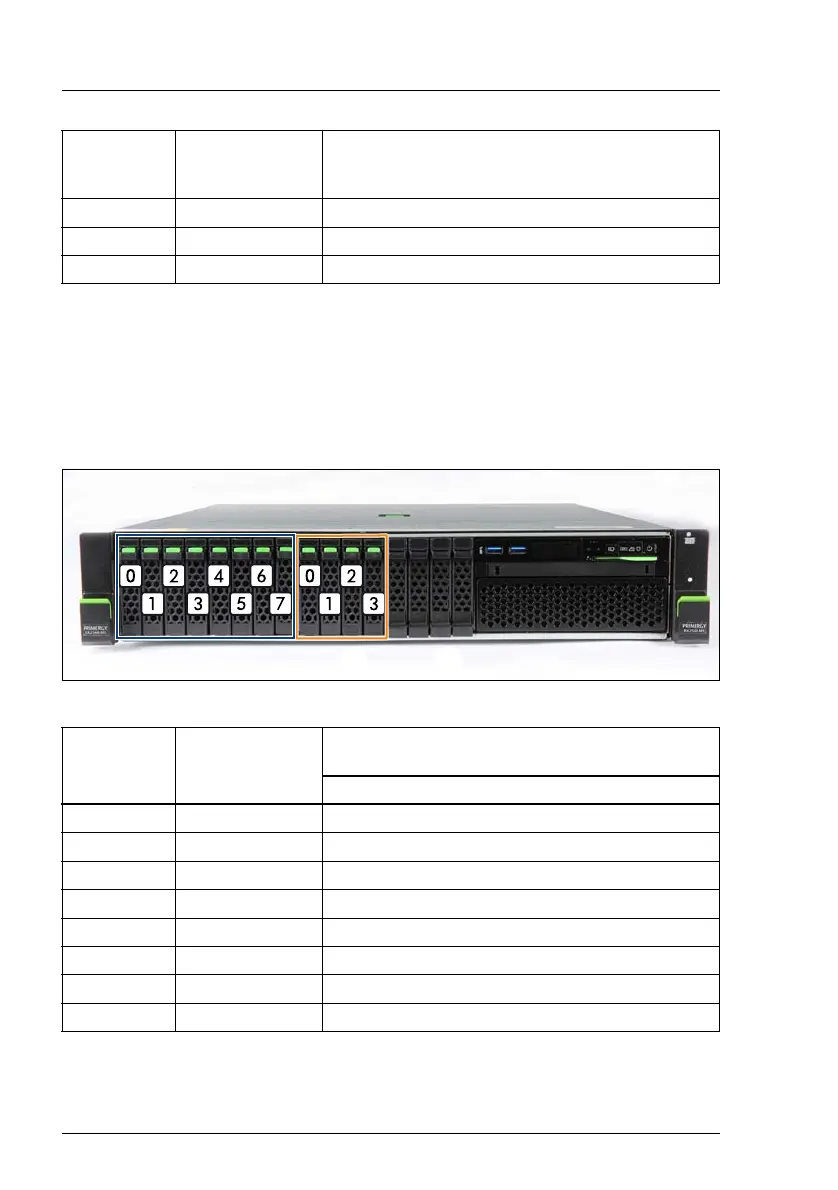

Figure 45: Configuration with up to eight 2.5-inch HDDs/SSDs and up to four PCIe SSDs
[21] 21 Vendor Product (1:21)
[22] 22 Vendor Product (1:22)
[23] 23 Vendor Product (1:23)
Position
Logical drive
number
ServerView RAID Manager display name
(Enclosure number: Port number)
one SAS controller
[0] 0 Vendor Product (0)
[1] 1 Vendor Product (1)
[2] 2 Vendor Product (2)
[3] 3 Vendor Product (3)
[4] 4 Vendor Product (4)
[5] 5 Vendor Product (5)
[6] 6 Vendor Product (6)
[7] 7 Vendor Product (7)
Position
Logical drive
number
ServerView RAID Manager display name
(Enclosure number: Port number)
one SAS controller and SAS expander board
