RX2520 M4
Upgrade and Maintenance Manual 369
System board and components
15.5.2 Removing the M.2 SSD
15.5.2.1 Preliminary steps
Ê "Shutting down the server" on page 48
Ê "Disconnecting the power cord" on page 49
Ê "Getting access to the component" on page 50
Ê "Removing the air duct" on page 61
Ê "Removing the crossbar" on page 65
Ê If applicable, "Removing an expansion card" on page 213
15.5.2.2 Removing the M.2 SSD

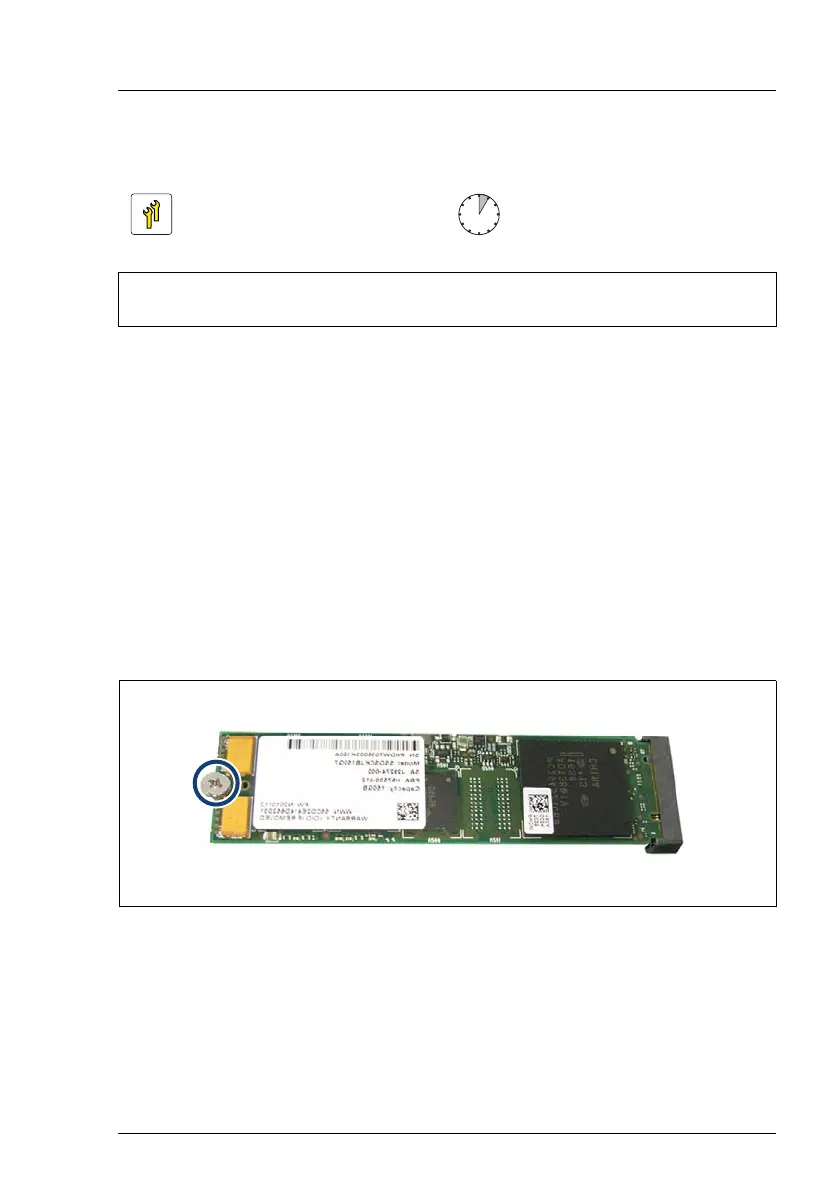

Figure 260: Removing the M.2 SSD (A)
Ê Remove the screw (see circle).
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: – Phillips PH1 / (+) No. 1 screw driver
– Hexagon screw driver (for moving the screw to another bolt)
