Fujitsu PRIMERGY RX2520 M4 Upgrade And Maintenance Manual

170 Upgrade and Maintenance Manual RX2520 M4
Hard disk drive (HDD) and solid state drive (SSD)
7.4.7.2 Removing a 3.5-inch HDD backplane

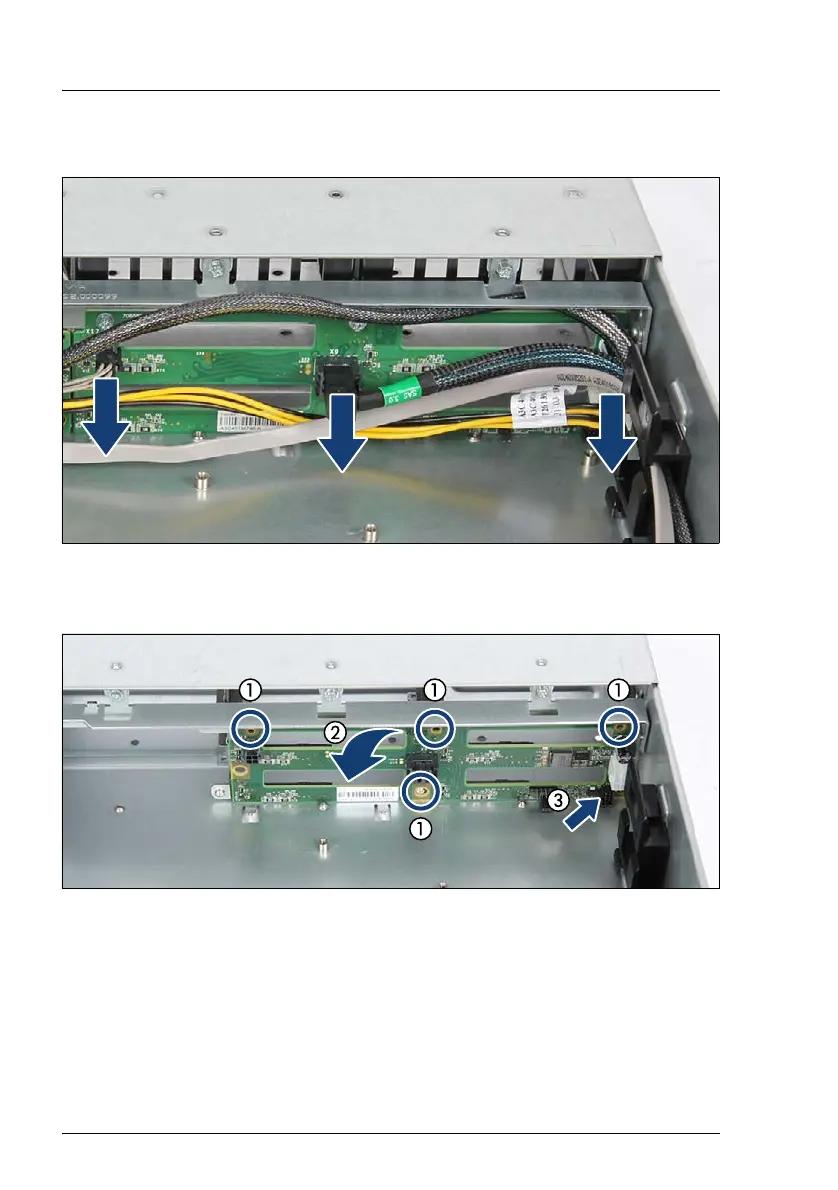

Figure 73: Disconnecting the cables from the backplane (example 4x 3.5-inch HDDs)
Ê Disconnect all cables from the backplane (see arrows).
Figure 74: Removing the 3.5-inch HDD backplane (A)
Ê Remove the four screws (1).
Ê Tilt out the backplane (2).
I Take care that the OOB connector will not be damaged! (3)
