150 Upgrade and Maintenance Manual
RX2520 M4
Hard disk drive (HDD) and solid state drive (SSD)

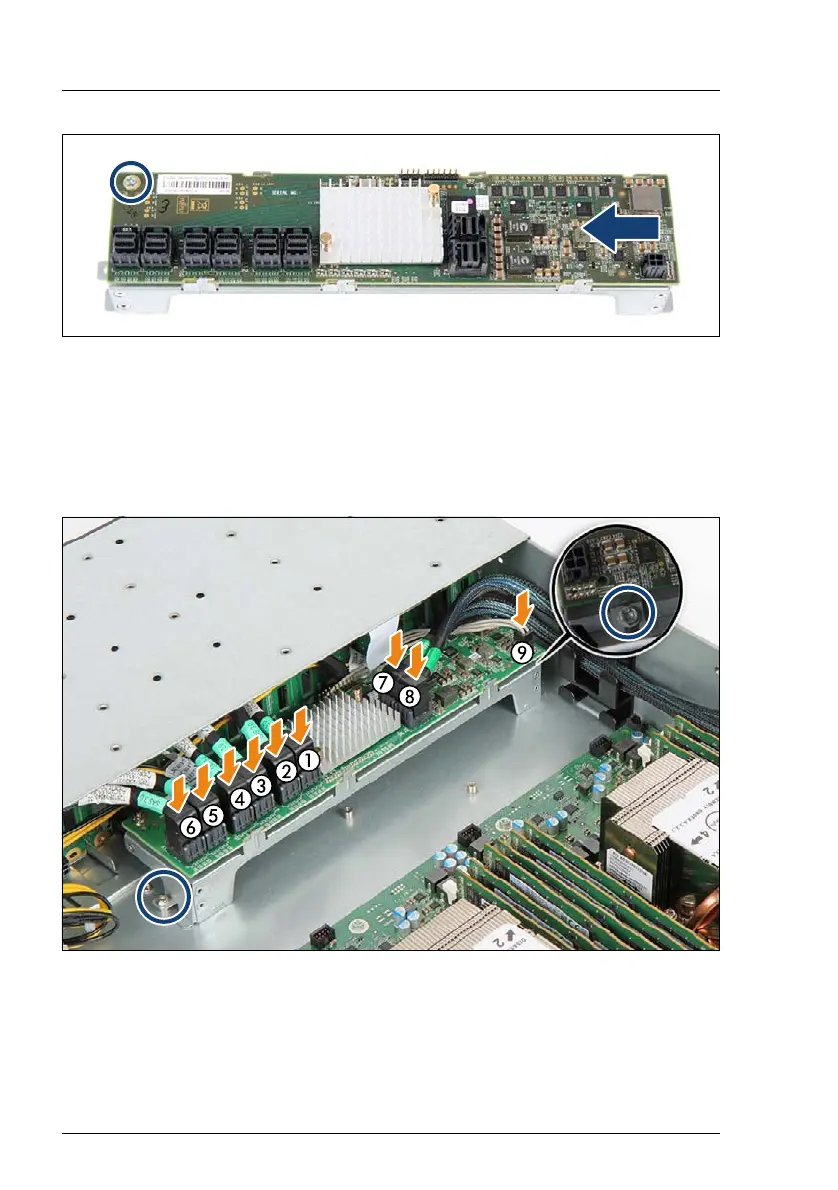

Figure 58: Installing the SAS expander board
Ê Push the SAS expander board in the direction of the arrow.
Ê Fasten the SAS expander board with one screw M3 x 2.5 mm (see circle).
7.3.11.3 Installing the SAS expander board holder
Figure 59: Installing the SAS expander board holder (example 24x 2.5-inch HDD)
Ê Position the SAS expander board holder in the chassis until the recess fits
under the screw (see close-up).
Ê Fasten the SAS expander board holder with two screws M3 x 4.5 mm (see
circles).
