RX2520 M4
Upgrade and Maintenance Manual 377
System board and components
15.6.2 Removing the Dual microSD 64GB Enterprise
15.6.2.1 Preliminary steps
Ê "Shutting down the server" on page 48
Ê "Disconnecting the power cord" on page 49
Ê "Getting access to the component" on page 50
15.6.2.2 Removing the Dual microSD 64GB Enterprise

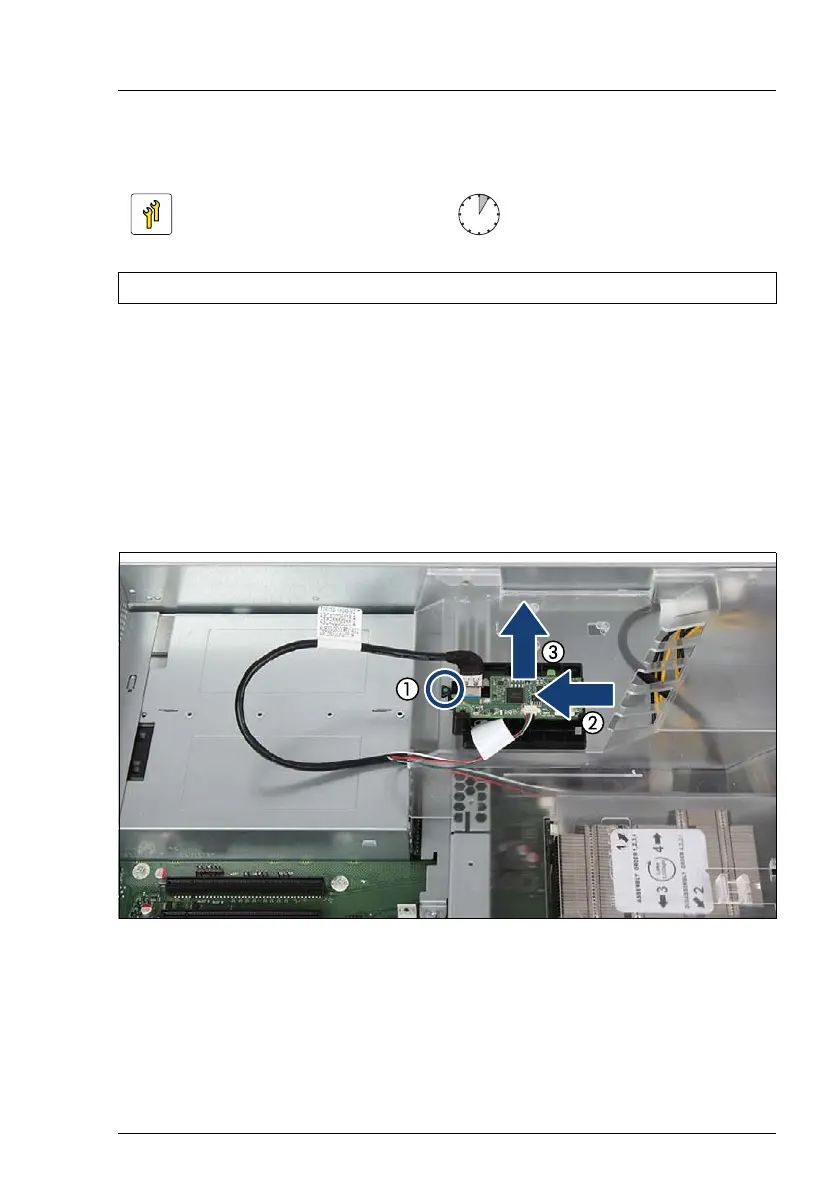

Figure 267: Removing the Dual microSD 64GB Enterprise
Ê Push the holder in direction of the arrow until it disengages (1).
Ê Remove the holder from the air duct (2).
Ê Remove the air duct, see section "Removing the air duct" on page 61.
Ê Disconnect the cables from the system board (see figure 264 on page 374).
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
