RX2520 M4 Upgrade and Maintenance Manual 401
Appendix A
16.2.3 Server rear
16.2.3.1 Connectors on the I/O panel

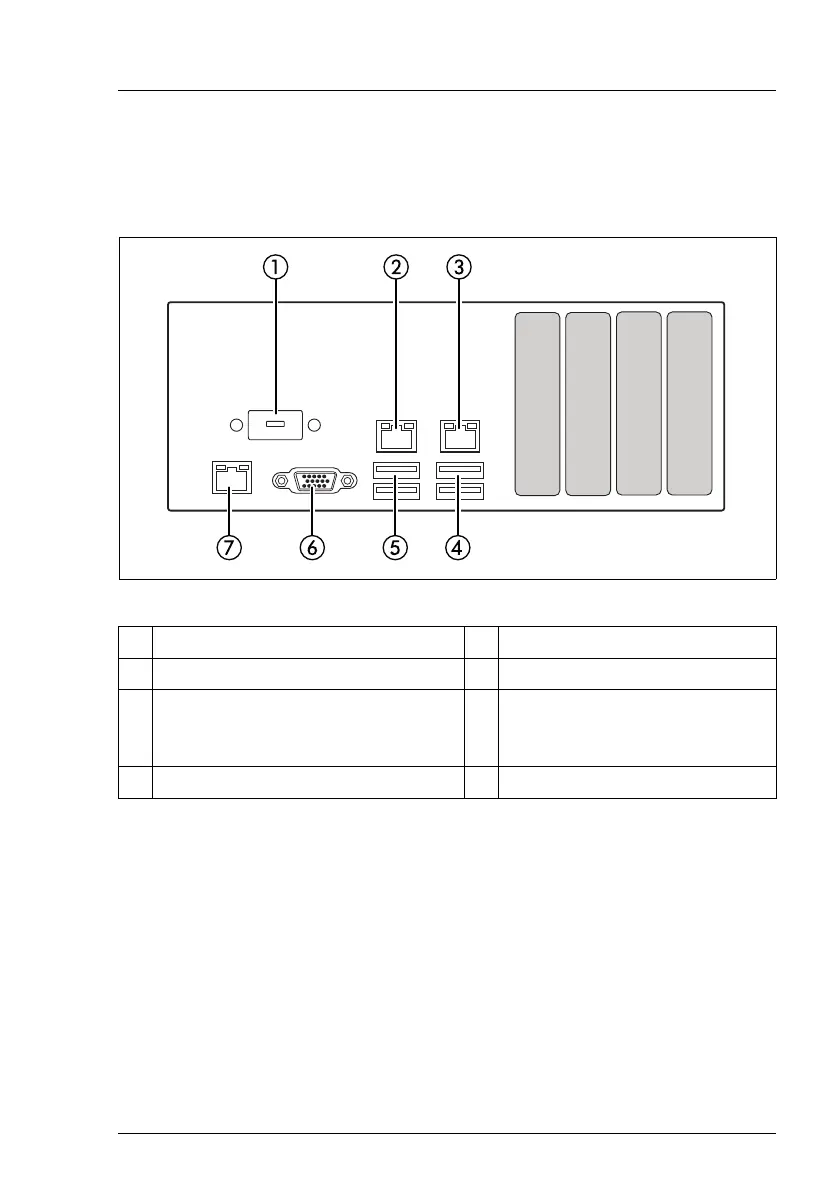

Figure 282: Connectors on the I/O panel
I Depending on the BIOS settings, the shared LAN connector may also be
used as a management LAN connector. For more information, see the
corresponding BIOS Setup Utility reference manual.
1 COM1 connector (optional)* 5 2x USB 3.0 connector
2 Shared LAN connector (LAN1) 6 Video connector (VGA)
3 LAN connector (LAN2) 7 Management LAN connector
(for iRMC S5 server
management function)
4 2x USB 3.0 connector
** The serial interface COM1 can be used as the standard interface or for
communication with iRMC.
HDD/SSD
HDD/SSD
HDD/SSD
HDD/SSD
1234
9
