RX2520 M4
Upgrade and Maintenance Manual 333
13.4.1.3 Installing the front panel on QRL

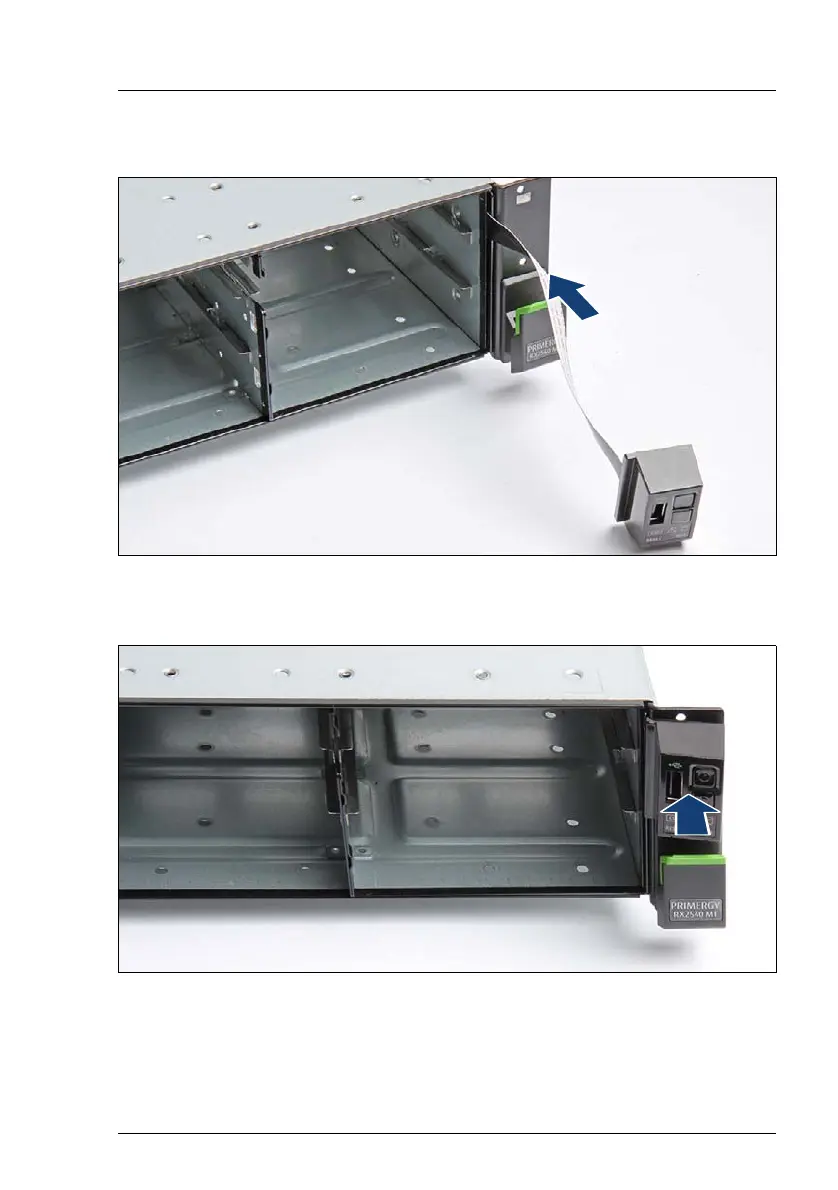

Figure 232: Installing the front panel on QRL (A)
Ê Thread the front panel cable through the opening.
Figure 233: Installing the front panel on the QRL (B)
Ê Position the front panel on the ear.
Ê Fasten the front panel with two screws (see figure 230).
