RX2520 M4
Upgrade and Maintenance Manual 163
Hard disk drive (HDD) and solid state drive (SSD)

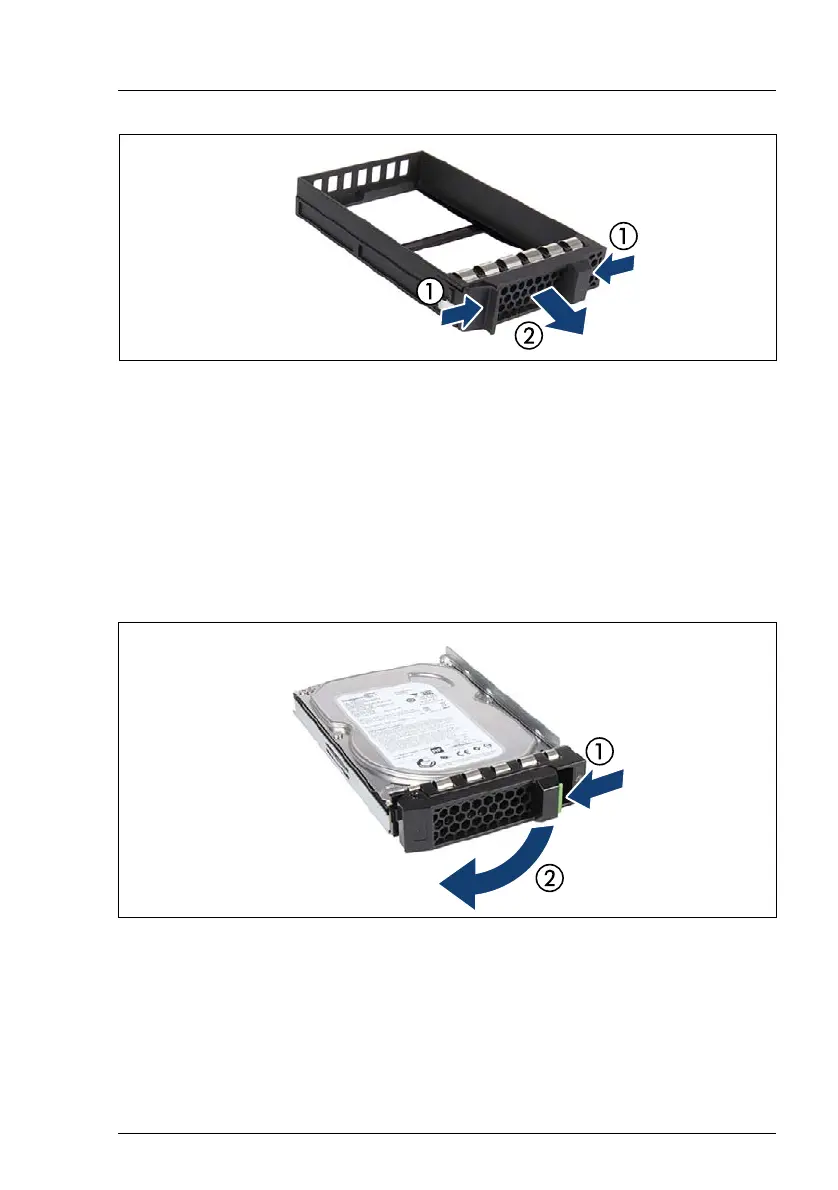

Figure 69: Removing the dummy module
Ê Press both tabs together (1) and pull the dummy module out of its bay (2).
V CAUTION!
Keep the dummy module for future use.
Always replace dummy modules into unused HDD bays to comply with
applicable EMC regulations and satisfy cooling requirements.
7.4.4.3 Installing a 3.5-inch HDD module
Figure 70: Opening the 3.5-inch HDD module locking lever
Ê Pinch the green locking clip (1) and open the locking lever (2).
