Fujitsu PRIMERGY RX2520 M4

284 Upgrade and Maintenance Manual RX2520 M4
Accessible drives
12.3.2.2 Removing the ODD

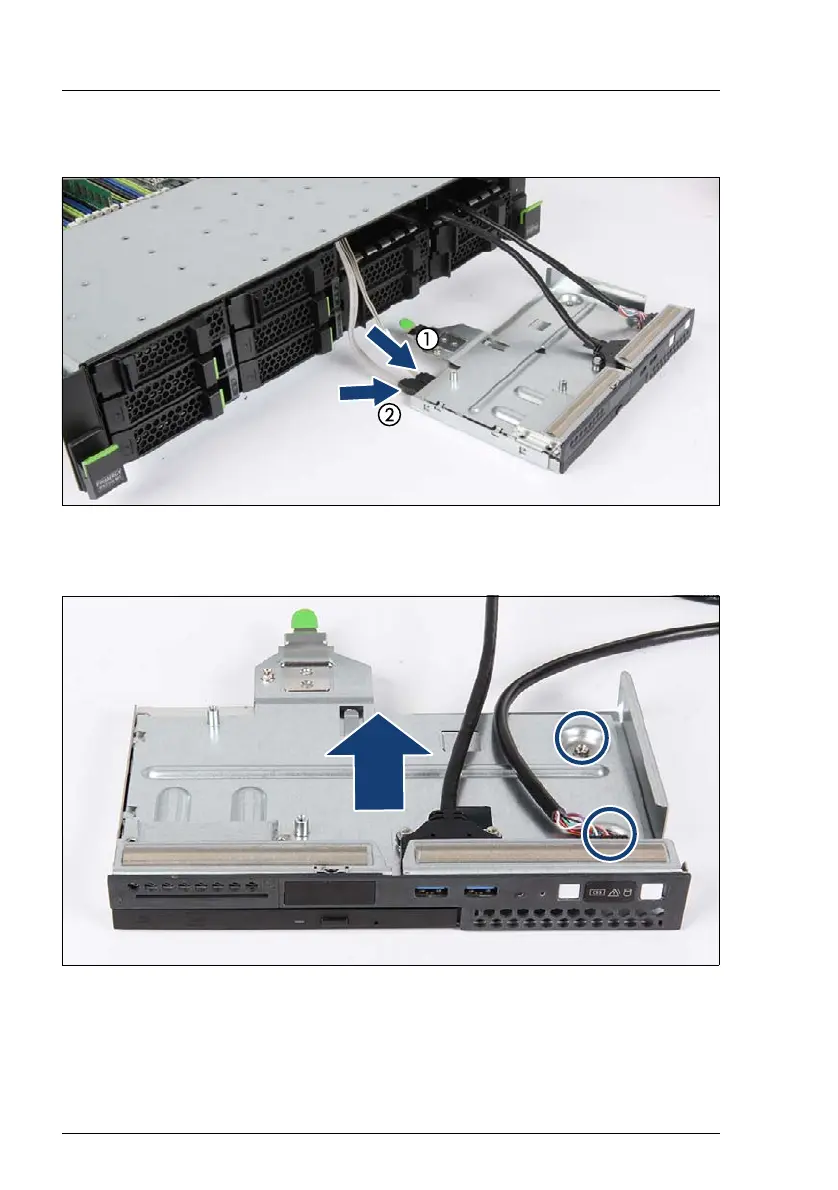

Figure 184: Removing the ODD (A)
Ê Disconnect all cables from the ODD.
Figure 185: Removing the cover plate
Ê Remove the two screws (see circles).
Ê Remove the cover plate of the front panel module.
Ê Pull the ODD upward towards (see arrow).
