RX2520 M4
Upgrade and Maintenance Manual 343
14.2 Removing the serial interface
14.2.1 Preliminary steps
Ê "Shutting down the server" on page 48
Ê "Disconnecting the power cord" on page 49
Ê "Getting access to the component" on page 50
Ê If applicable, remove the expansion card from slot 4, see section "Removing
expansion cards" on page 213.
14.2.2 Removing the serial interface

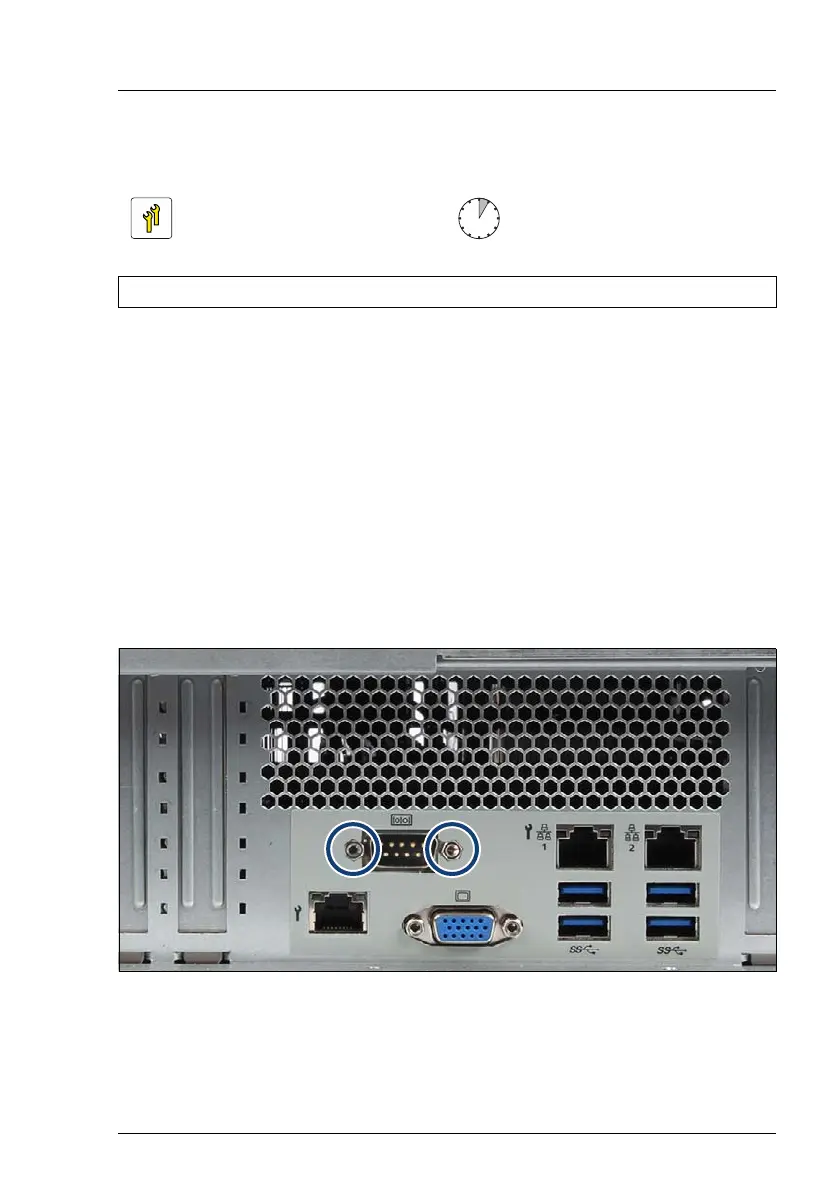

Figure 243: Removing the serial interface (A)
Ê Remove the two hexagon bolts (see circles).
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tool: hexagon screw driver 5 mm
