RX2520 M4
Upgrade and Maintenance Manual
275
Accessible drives

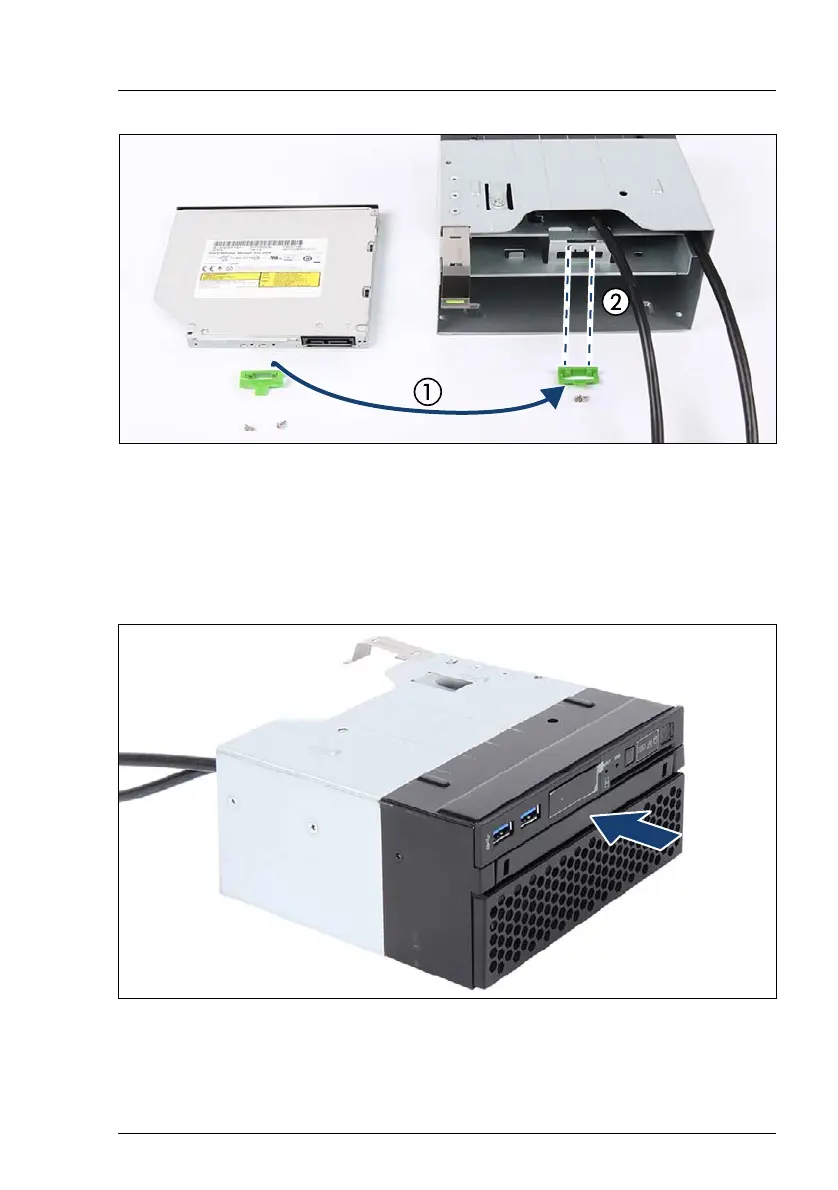

Figure 175: Installing ODD latch t
o the front cage
Ê
T
ur
n the ODD latch 180
o
as shown (1).
Ê
Fasten the ODD latch with two screws as shown
(2).
12.2.2.3
Installing the ODD dummy cover
Figure 176: Installing the ODD dummy cover
Ê
Install the ODD dummy cover
.
274
276
