280
Upgrade and Maintenanc
e Manual
RX2520
M4
Accessible drives
12.3.1.3
Inst
alling th
e ODD

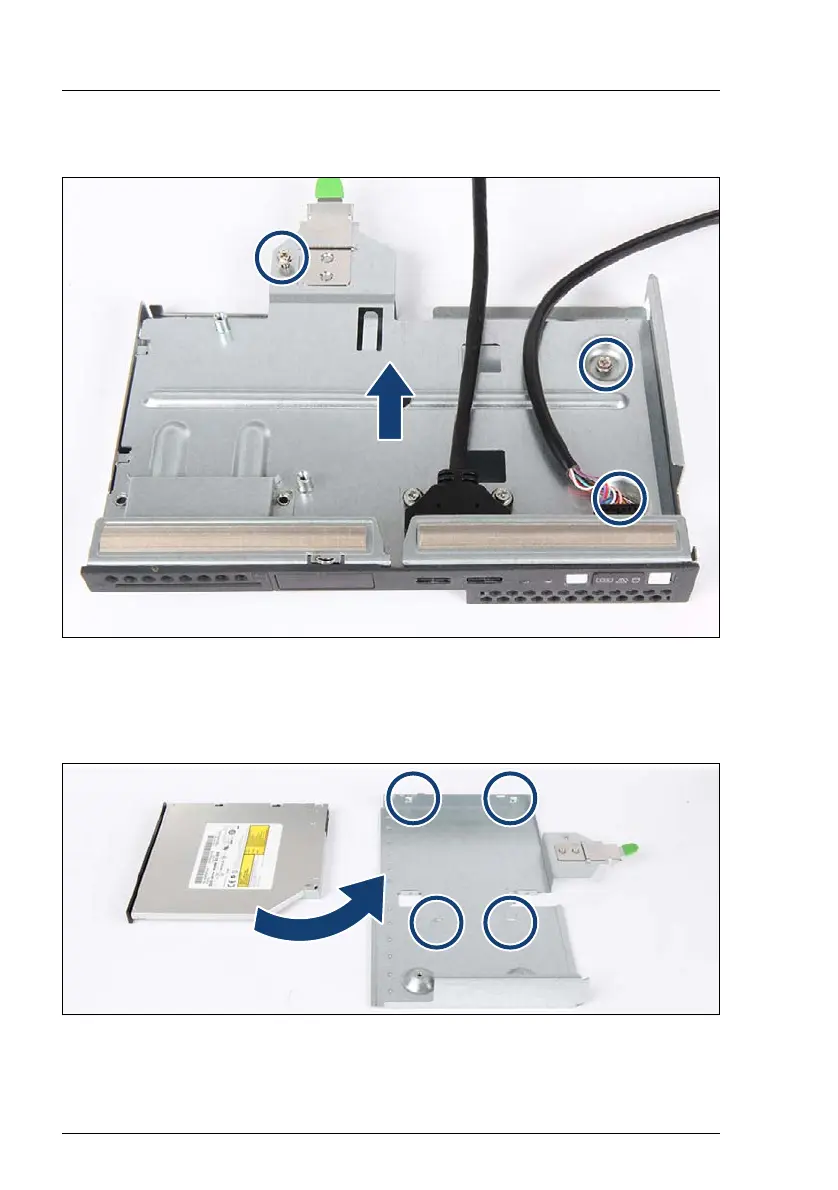

Figure 178: Removing the cover plate
Ê
Remove the three screws (see circles).
Ê
Remove the cover plate of the front panel module.
Figure 179: Noses in the cover plate
of the front panel module
279
281
