318 Upgrade and Maintenance Manual RX2520 M4
Front panel
Ê Connect the front panel cable (1) and secure it with two cable ties.
V CAUTION!
The cable tie (see circle) is necessary to avoid that the front panel
cable is disconnected when an ID card is inserted.
Ê Push the front USB connector in the corresponding recess and fasten the
front USB cable with two screws (2).
13.2.1.6 Installing the front panel module

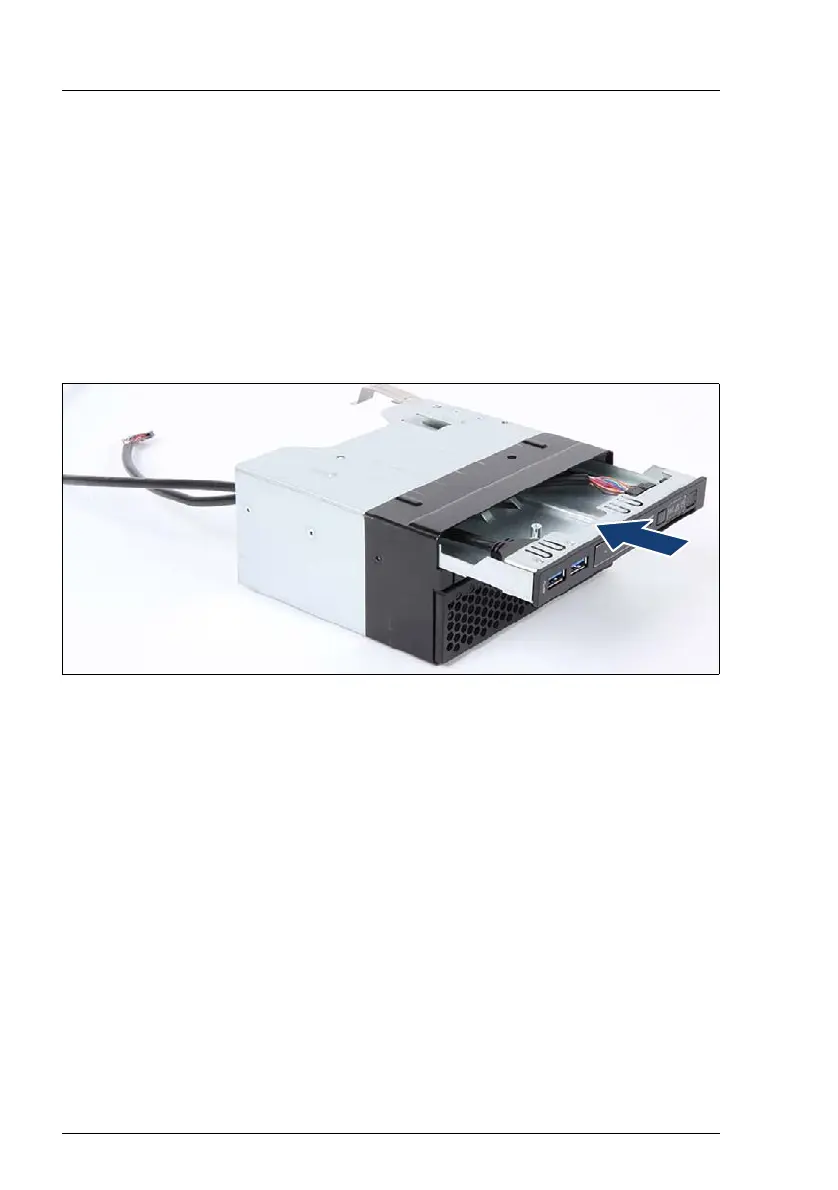

Figure 218: Installing the front panel module (B)
Ê Run the cables through the front panel bay.
Ê Insert the front panel module into the front panel cage (see arrow).
Ê Fasten the fully inserted front panel module with one screw.
