RX2520 M4
Upgrade and Maintenance Manual 61
Basic hardware procedures
4.8 Handling the air duct
4.8.1 Removing the air duct

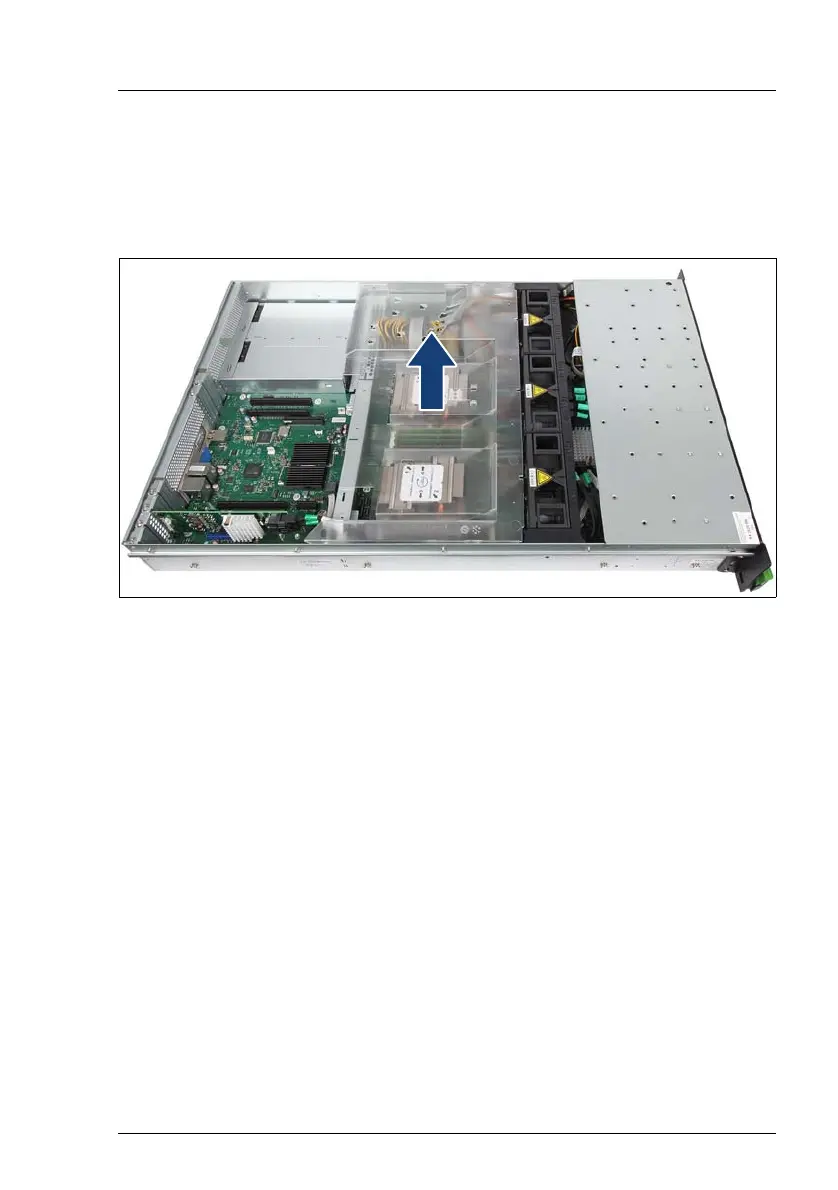

Figure 10: Removing the air duct
V CAUTION!
Be careful with the FBU cable.
If there is a FBU installed, follow the procedure that is described in
section "Removing the FBU with the holder" on page 228 first.
Ê Remove the air duct vertically upwards (see arrow).
