344 Upgrade and Maintenance Manual
RX2520 M4

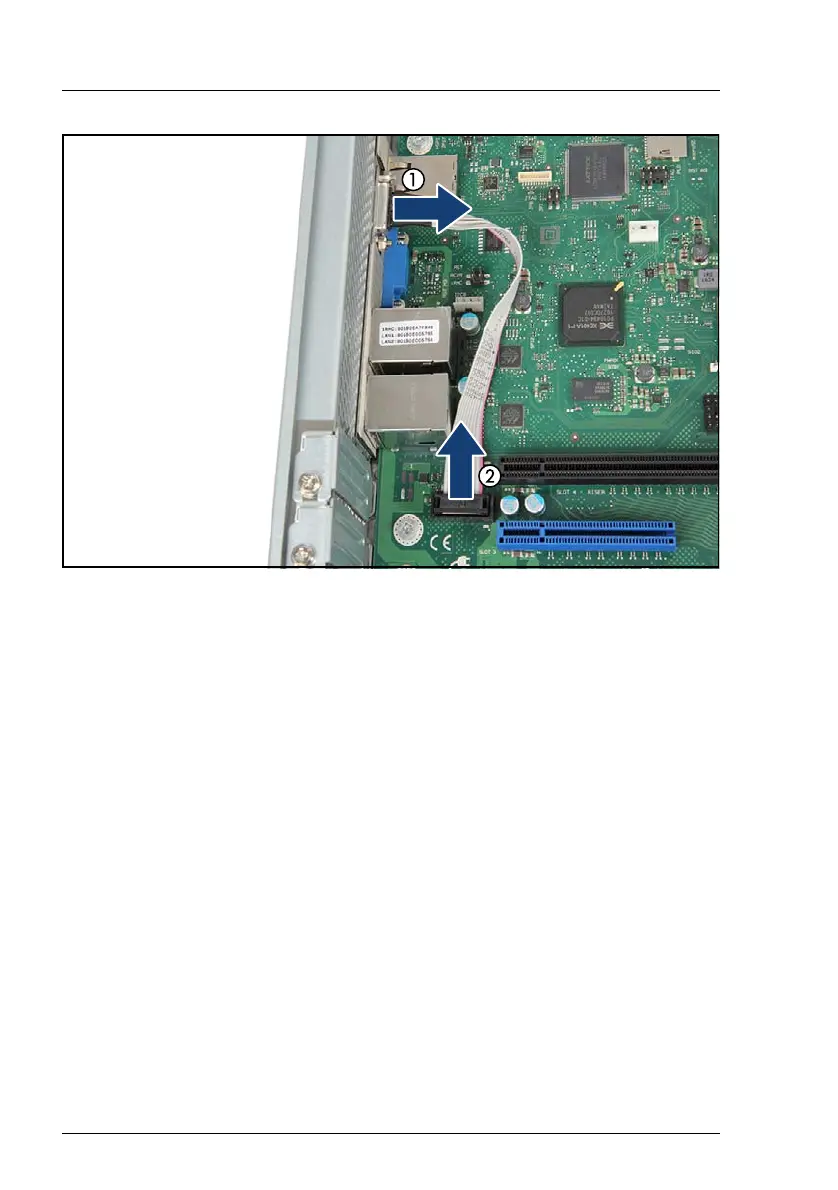

Figure 244: Removing the serial interface (B)
Ê Remove the serial interface (1).
Ê Disconnect the cable from the system board (2).
14.2.3 Concluding steps
Ê If applicable, install the expansion card in slot 4, see section "Installing
expansion cards" on page 207.
Ê "Reassembling" on page 55
Ê "Connecting the power cord" on page 59
Ê "Switching on the server" on page 60
