164 Upgrade and Maintenance Manual
RX2520 M4
Hard disk drive (HDD) and solid state drive (SSD)

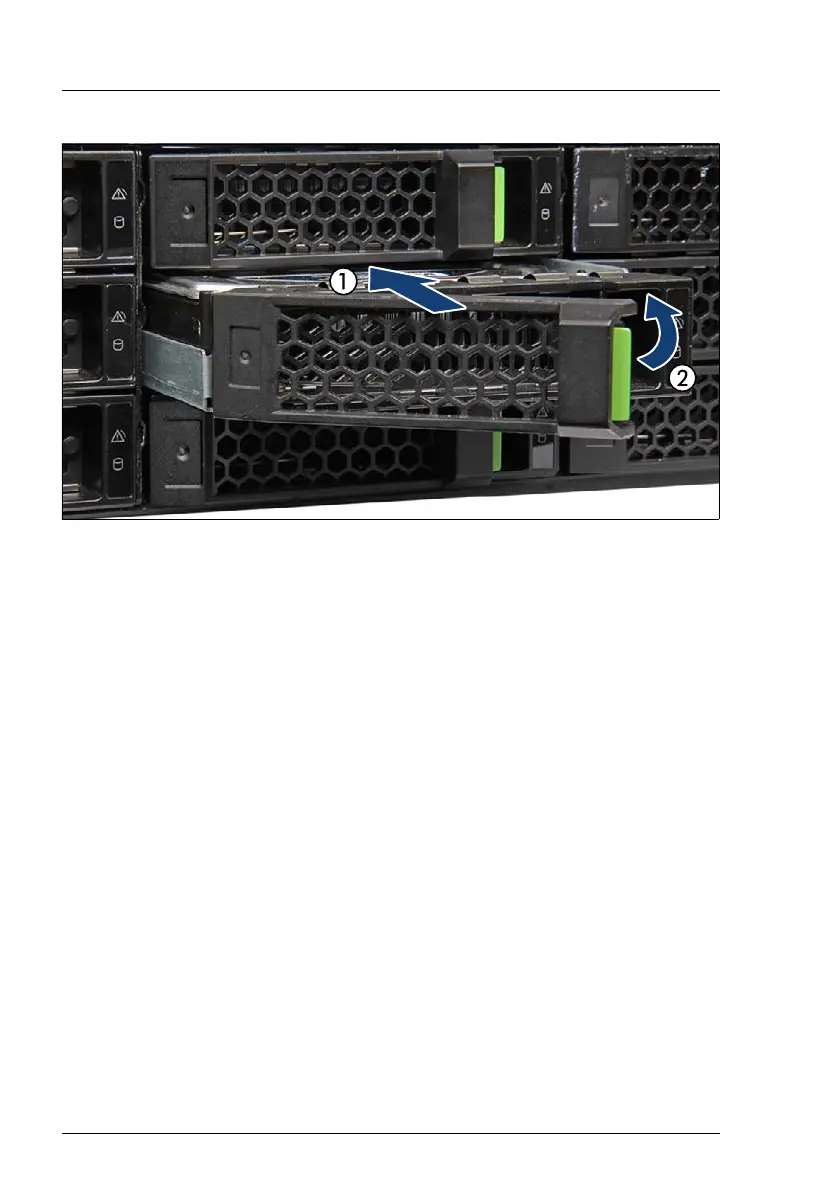

Figure 71: Inserting the 3.5-inch HDD module
Ê Insert the HDD module into a drive bay and carefully push back as far as it
will go (1).
Ê Close the locking lever to lock the HDD module in place (2).
Ê When using a RAID array, add the additional HDD to the RAID array.
I Configuring the RAID array, refer to the documentation of the RAID
controller, used in your configuration, see section "Documents you
need at hand" on page 31.
7.4.4.4 Concluding steps
Ê No steps needed.
