Hard disk drive (HDD) and solid state drive (SSD)
7.4.10.3 Installing the new SAS expander board

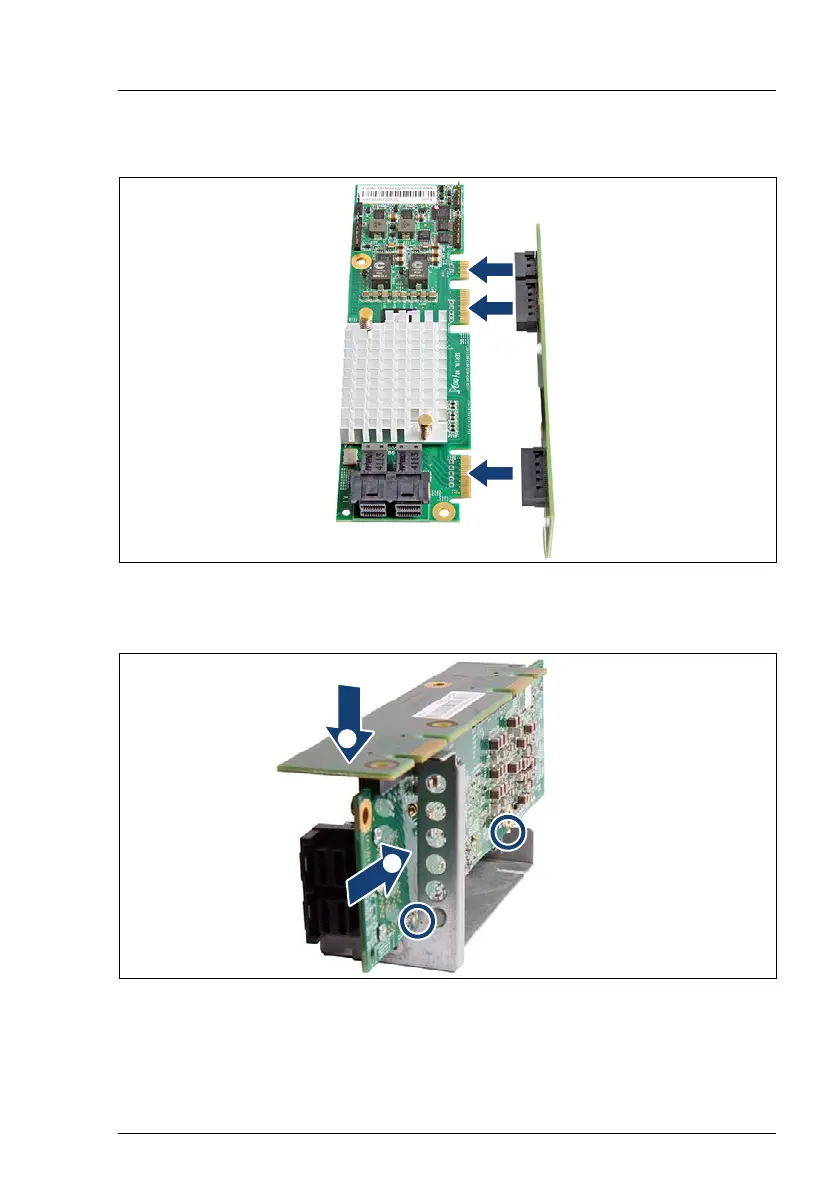

Figure 94: Connecting the connector card
Ê Connect the connector card with the SAS expander board.
Figure 95: Installing the mounted SAS expander board
Ê Position the installed SAS expander board in the two recesses (see circles)
of the SAS expander board holder (1).
햲
햳
