RX2520 M4
Upgrade and Maintenance Manual 193
8.2.3 Installing a new fan module

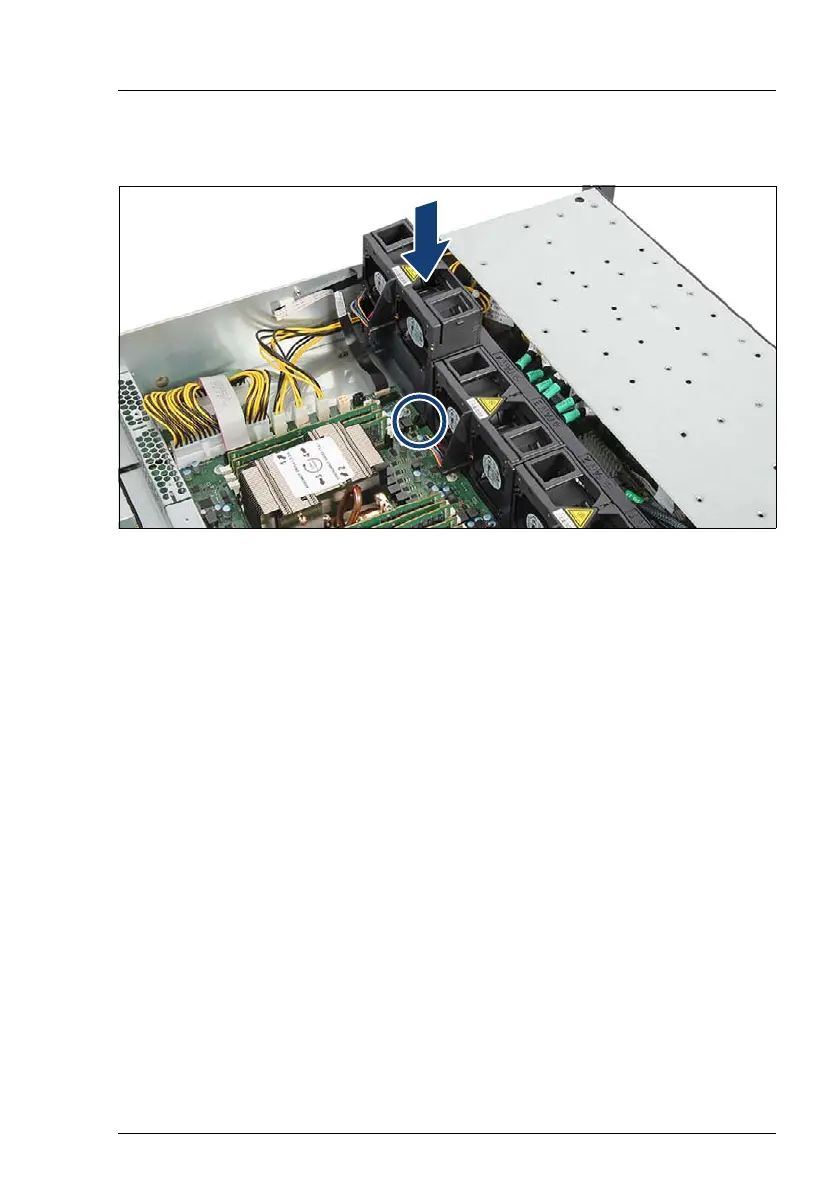

Figure 101: Installing the fan module
Ê Insert the fan module as shown.
Ê Press down the fan module until it locks.
Ê Connect the corresponding fan cable (see circle), see table 3.
I Pay attention to the connector orientation before connect the
connector onto the system board. Do not press the fan connector to
strong, otherwise the top plastic plate can be damaged.
8.2.4 Concluding steps
Ê "Installing the air duct" on page 62
Ê "Reassembling" on page 55
I When a system fan module fails, the remaining fans will start operating
at full speed. After the defective fan module has been replaced, all fans
will continue to run at full speed for a couple of minutes, before resetting
to a lower speed.
Ensure that all system fans reset to a normal operating speed.
Ê "Performing a fan test" on page 96
