RX2520 M4
Upgrade and Maintenance Manual 243

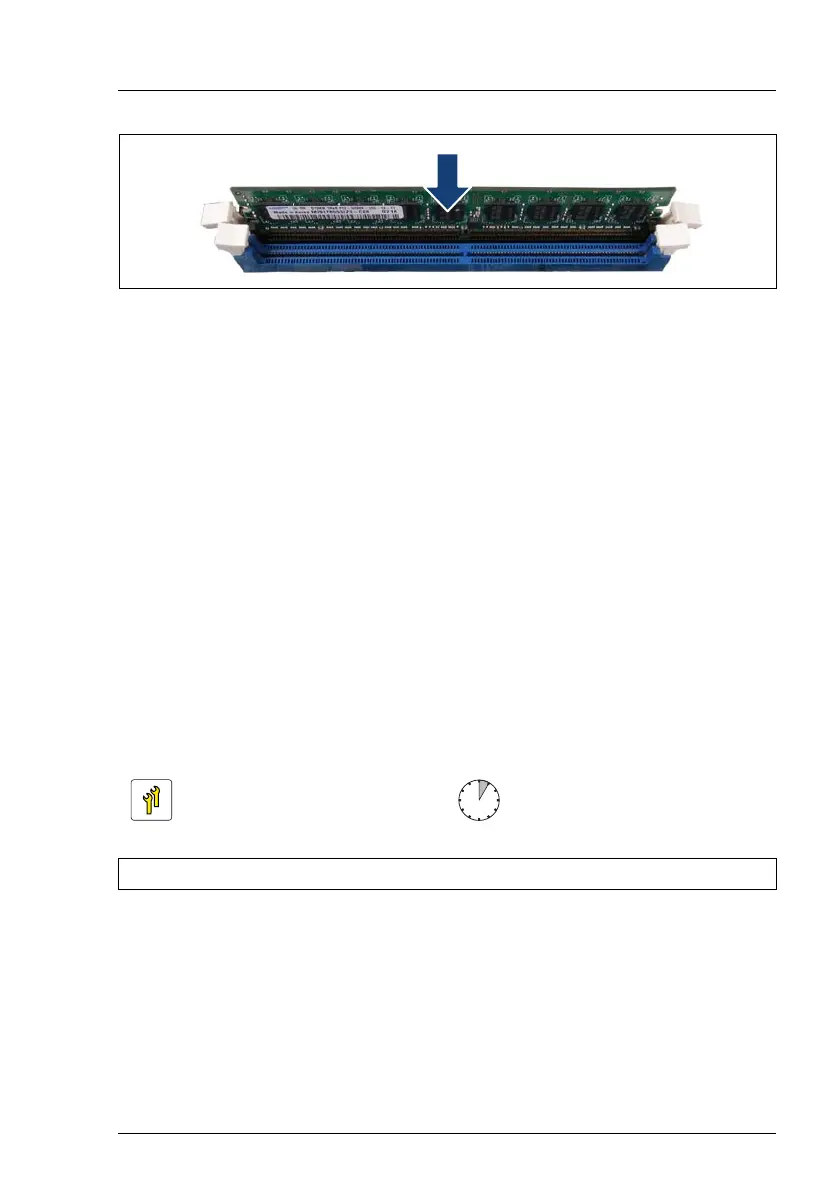

Figure 145: Installing a memory module
Ê Align the notch on the bottom of the module with the crossbar in the slot.
Ê Press down on the memory module until the securing clips snap into the
cutouts at each end of the module.
10.2.4 Concluding steps
Ê "Installing the air duct" on page 62
Ê "Reassembling" on page 55
Ê "Connecting the power cord" on page 59
Ê "Switching on the server" on page 60
Ê "Resuming BitLocker functionality" on page 89
10.3 Removing memory modules
10.3.1 Preliminary steps
Ê "Suspending BitLocker functionality" on page 67
Ê "Shutting down the server" on page 48
Ê "Disconnecting the power cord" on page 49
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
