RX2520 M4
Upgrade and Maintenance Manual 63
Basic hardware procedures
4.9 Handling the fan holder
4.9.1 Removing the fan holder

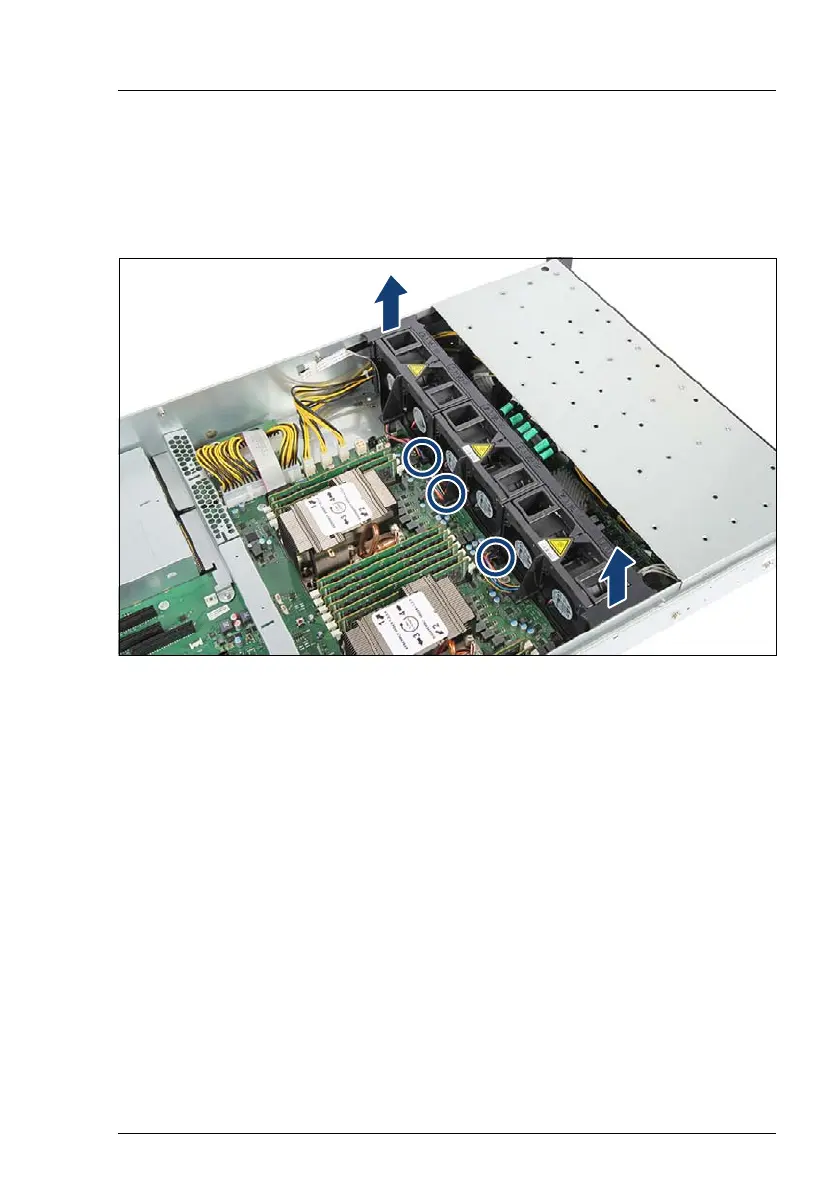

Figure 13: Removing the fan holder
Ê Disconnect all fan cables (see circles).
Ê Lift the fan holder out of the chassis (see arrows).
