RX2520 M4
Upgrade and Maintenance Manual 183
Hard disk drive (HDD) and solid state drive (SSD)
7.4.10 Replacing the SAS expander board
7.4.10.1 Preliminary steps
Ê "Locating the defective server" on page 45
Ê "Suspending BitLocker functionality" on page 67
Ê "Shutting down the server" on page 48
Ê "Disconnecting the power cord" on page 49
Ê "Getting access to the component" on page 50
Ê "Removing the air duct" on page 61
Ê "Removing the fan holder" on page 63
7.4.10.2 Removing the defective SAS expander board
Ê Remove the SAS expander board holder, see section "Removing the SAS
expander board holder" on page 177.

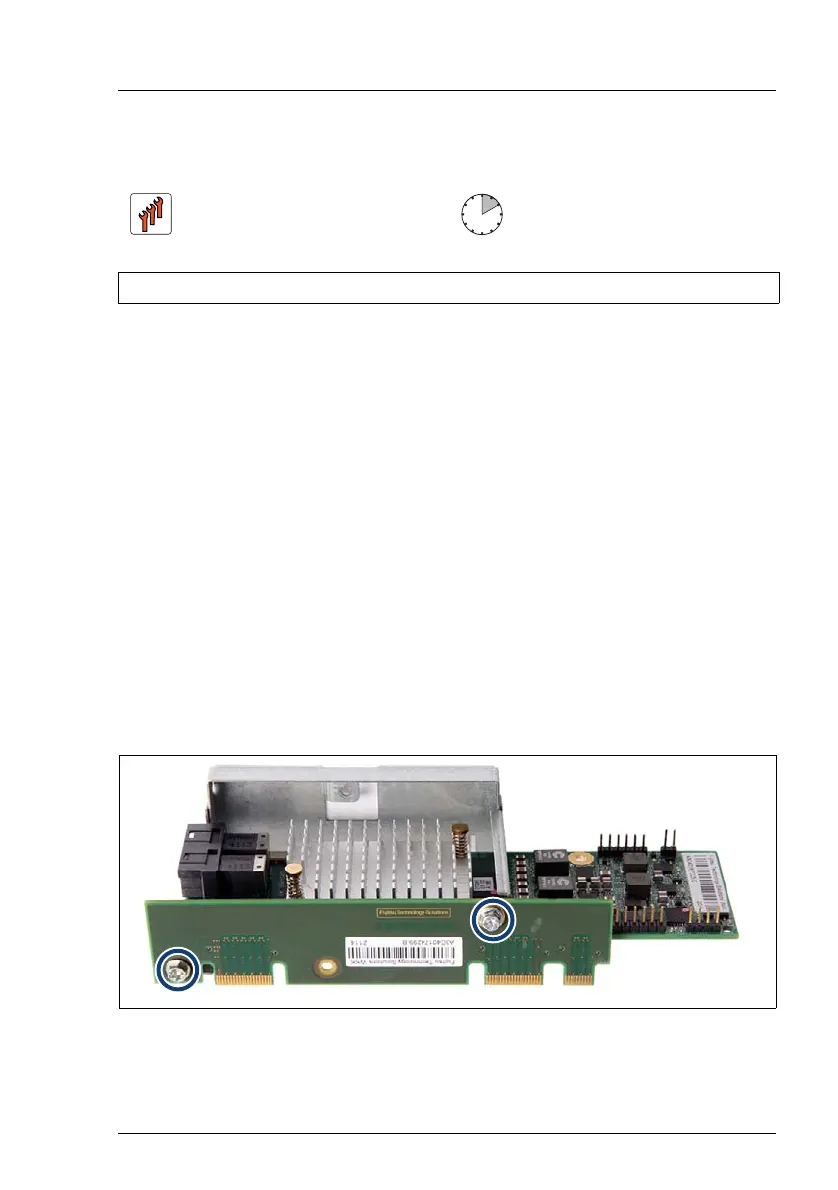

Figure 91: Removing the installed SAS expander board (A)
Ê Remove the two screws (see circles).
Field Replaceable Unit
(FRU)
Hardware: 10 minutes
Tools: Phillips PZ2 / (+) No. 2 screw driver / hexagon screw driver 5 mm
