128 Upgrade and Maintenance Manual
RX2520 M4
Hard disk drive (HDD) and solid state drive (SSD)
7.3.2 Configuration with up to 16 HDD/SSD modules

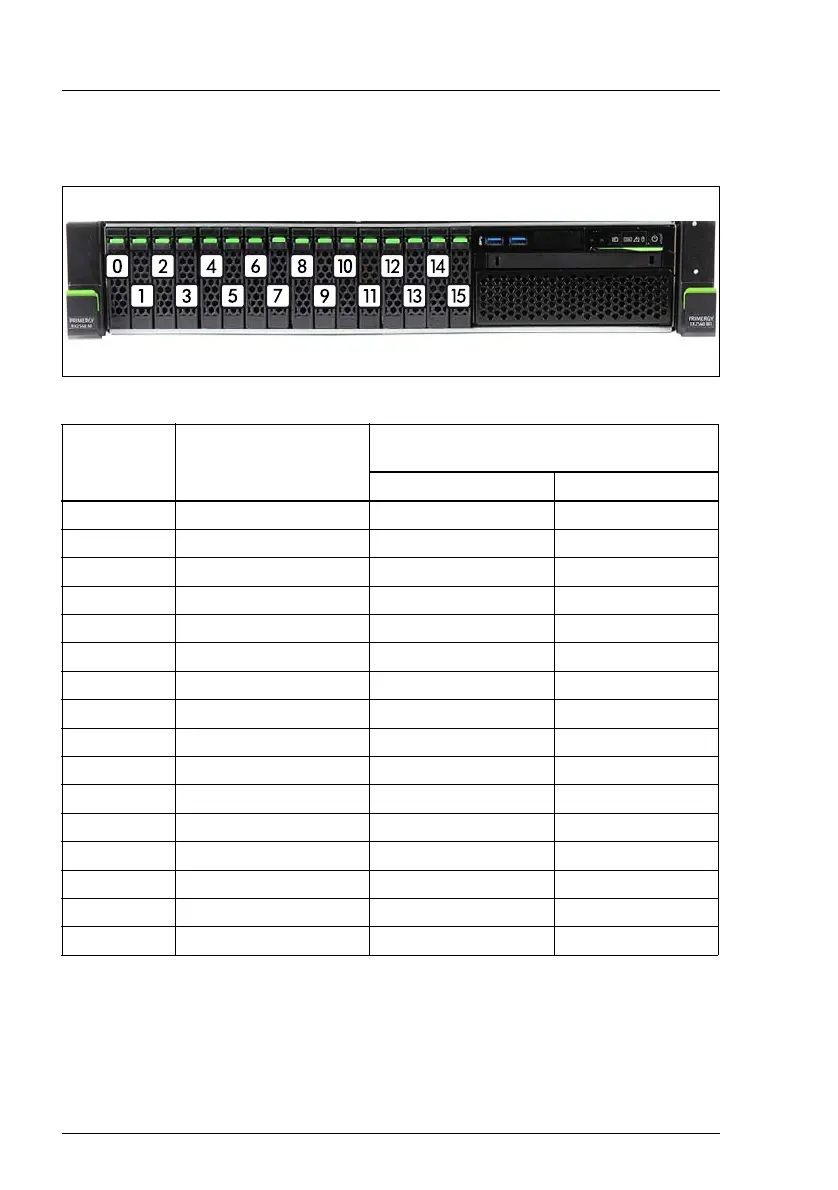

Figure 43: Configuration with up to 16 x 2.5-inch HDDs/SSDs
Position Logical drive number
ServerView RAID Manager display name
(Enclosure number: Port number)
one SAS controller two SAS controllers
[0] 0 Vendor Product (0) Vendor Product (0:0)
[1] 1 Vendor Product (1) Vendor Product (0:1)
[2] 2 Vendor Product (2) Vendor Product (0:2)
[3] 3 Vendor Product (3) Vendor Product (0:3)
[4] 4 Vendor Product (4) Vendor Product (0:4)
[5] 5 Vendor Product (5) Vendor Product (0:5)
[6] 6 Vendor Product (6) Vendor Product (0:6)
[7] 7 Vendor Product (7) Vendor Product (0:7)
[8] 8 Vendor Product (8) Vendor Product (1:0)
[9] 9 Vendor Product (9) Vendor Product (1:1)
[10] 10 Vendor Product (10) Vendor Product (1:2)
[11] 11 Vendor Product (11) Vendor Product (1:3)
[12] 12 Vendor Product (12) Vendor Product (1:4)
[13] 13 Vendor Product (13) Vendor Product (1:5)
[14] 14 Vendor Product (14) Vendor Product (1:6)
[15] 15 Vendor Product (15) Vendor Product (1:7)
