RX2520 M4
Upgrade and Maintenance Manual 173
Hard disk drive (HDD) and solid state drive (SSD)
7.4.7.4 Connecting a 3.5-inch HDD backplane
I For the cable plan, see chapter "Appendix B" on page 411.

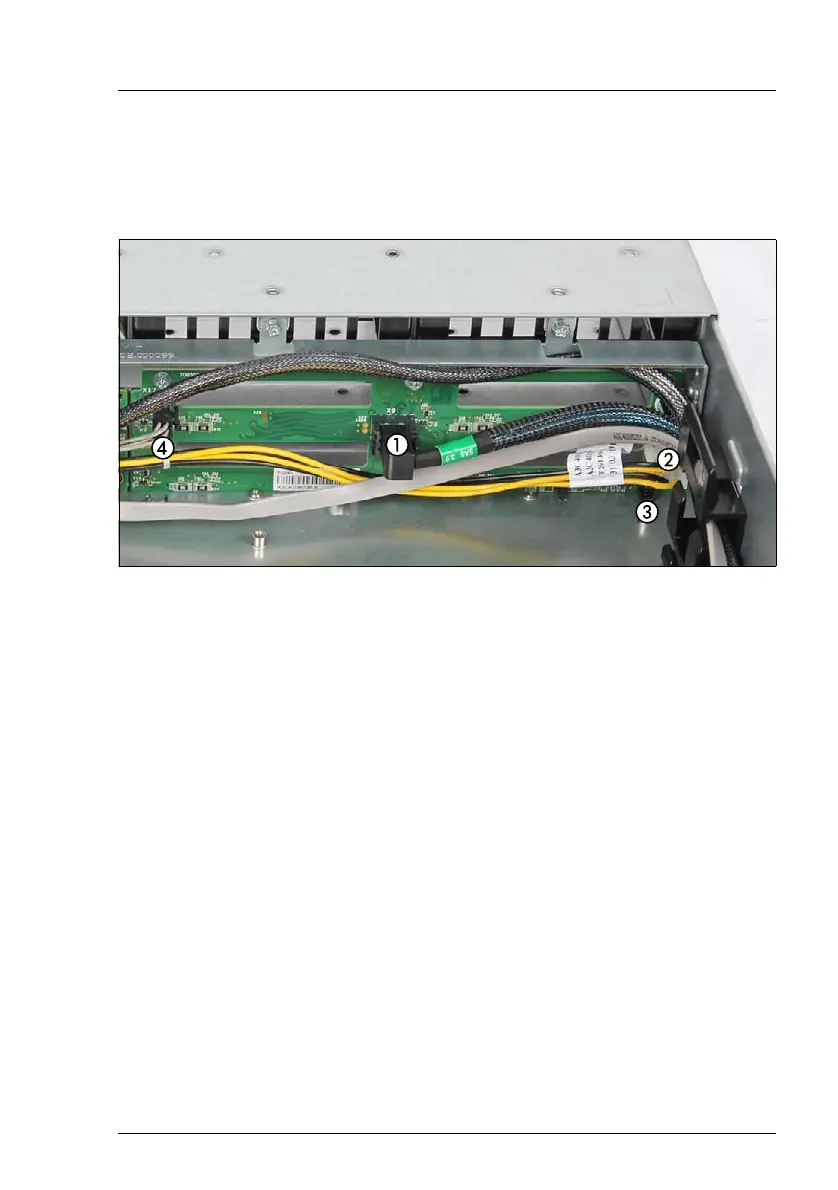

Figure 79: Connecting cables to the backplane (example 4x 3.5-inch HDDs)
Ê Connect the cables to the backplane:
– (1) Corresponding SAS cable to connector "X9"
– (2) Power cable to connector "X40"
– (3) If applicable, OOB cable to connector "X11"
– (4) If applicable, ODD power cable to connector "X17" (only for the first
backplane)
7.4.7.5 Concluding steps
Ê "Installing the fan holder" on page 64
Ê "Installing the air duct" on page 62
Ê "Reassembling" on page 55
Ê "Installing 3.5-inch HDD modules" on page 162
Ê "Connecting the power cord" on page 59
Ê "Switching on the server" on page 60
Ê "Resuming BitLocker functionality" on page 89
