328 Upgrade and Maintenance Manual
RX2520 M4
13.3.1.5 Installing the front panel module
Ê If applicable, install the ODD, see section "Installing the ODD" on page 280.

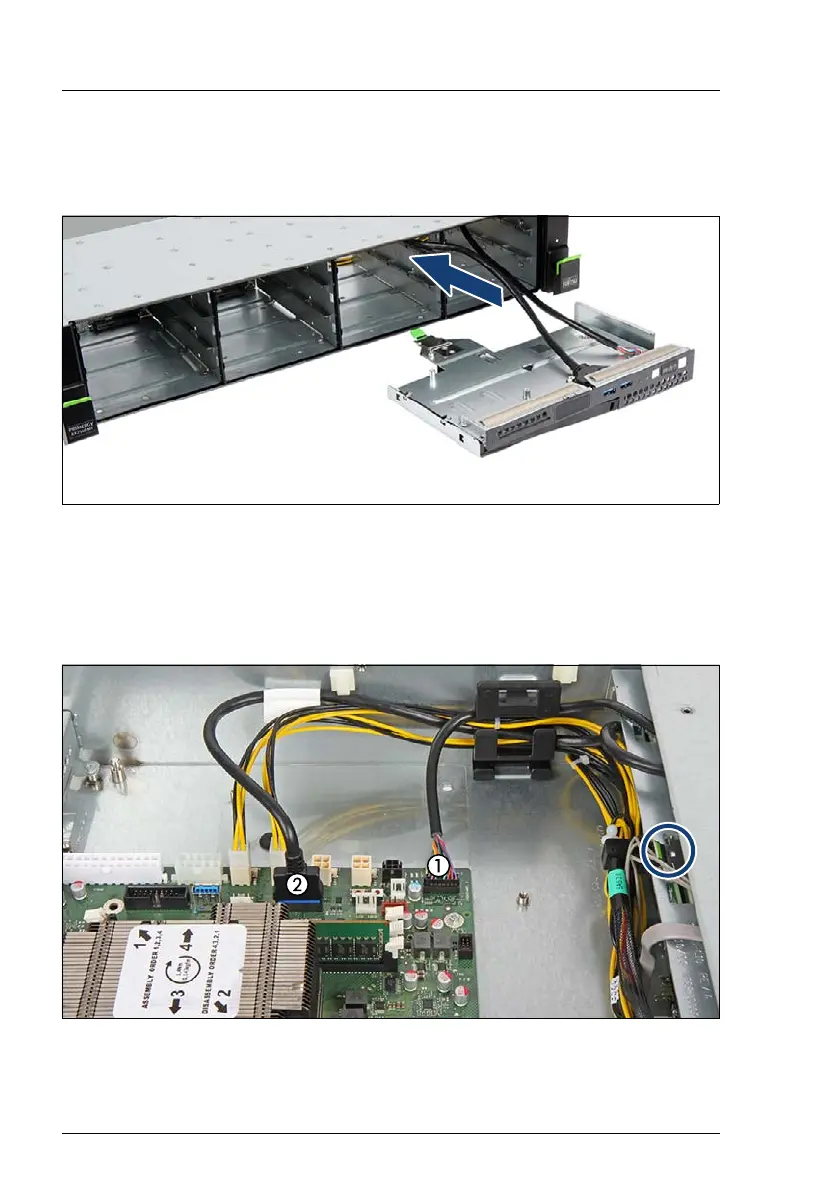

Figure 227: Installing the front panel module
Ê Run the cables through the opening.
Ê Insert the front panel module into the chassis (see arrow).
Ê Insert the ID card, see figure 270 on page 387.
Figure 228: Connecting the front panel cables
Ê Connect the front panel cables to the system board:
