362 Upgrade and Maintenance Manual
RX2520 M4
System board and components

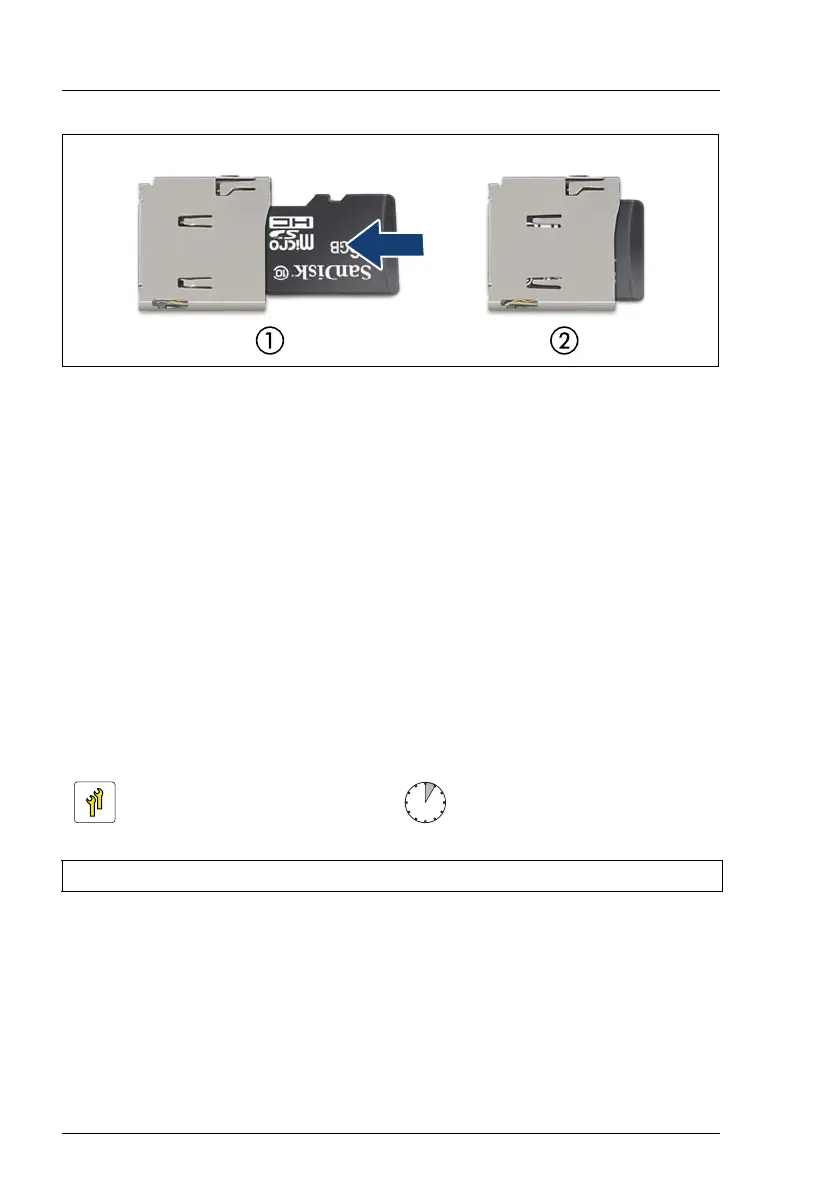

Figure 254: Installing the iRMC microSD card
Ê With the label facing up, insert the iRMC microSD card into the microSD
card slot (1) as far as it will go (2).
I The onboard position of the microSD card slot can be found in section
"Connectors and indicators on the system board" on page 391.
15.4.1.3 Concluding steps
Ê "Reassembling" on page 55
Ê "Connecting the power cord" on page 59
Ê "Switching on the server" on page 60
15.4.2 Removing the iRMC microSD card
15.4.2.1 Preliminary steps
Ê "Shutting down the server" on page 48
Ê "Disconnecting the power cord" on page 49
Ê "Getting access to the component" on page 50
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
