178 Upgrade and Maintenance Manual
RX2520 M4
Hard disk drive (HDD) and solid state drive (SSD)

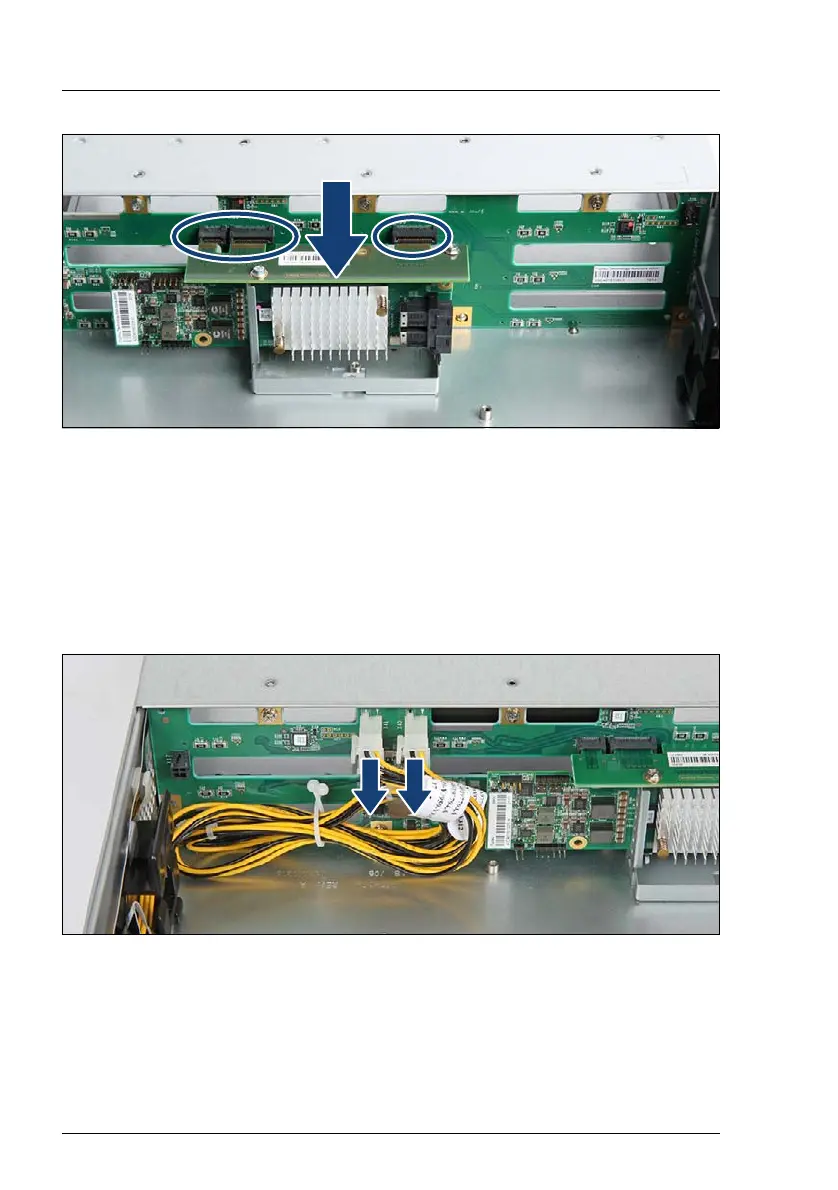

Figure 82: Removing the SAS expander board holder (B)
Ê Disconnect the connector card from the three connectors of the backplane
(see circles) and remove it.
I Lift up the SAS expander board holder and take care of the stand-off
in the chassis.
7.4.9.3 Removing the defective 12x 3.5-inch HDD backplane
Figure 83: Disconnecting the power cables from the 12x 3.5-inch HDD backplane
Ê Disconnect the two power cables from the backplane (see arrows).
