Fujitsu PRIMERGY RX2520 M4 Upgrade And Maintenance Manual

24RX2520 M4

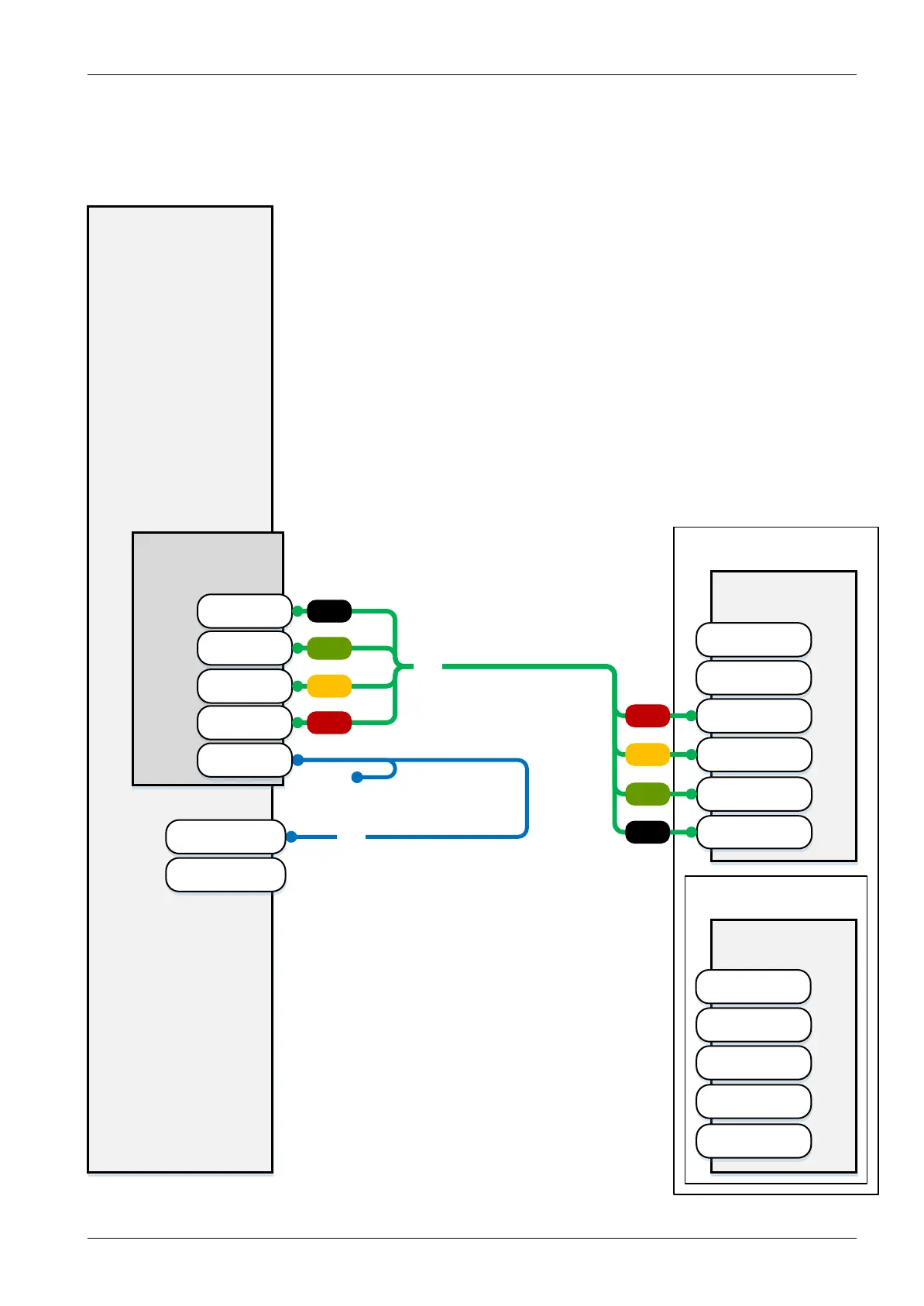

PCIeSSD Cabling 8x2,5" + 4x2.5" Retimer
Cable plan
12x2.5"
8x2.5"
C37
PCIe Retimer
slot4 (LR)
Port 1
Port 0
Port 3
Port 2
VPP
VPP CPU2
VPP CPU1
X12 (Bpl PWR)
X11 (OOB)
4x 2.5" PCIe
P0_X1 (Data)
P1_X2 (Data)
P2_X3 (Data)
P3_X4 (Data)
X11 (OOB)
X40 (Bpl PWR)
8x2.5"
X17 (ODD PWR)
X9 (Data)
X10 (Data)
Systemboard
D3386
C43
