RX2520 M4
Upgrade and Maintenance Manual 293

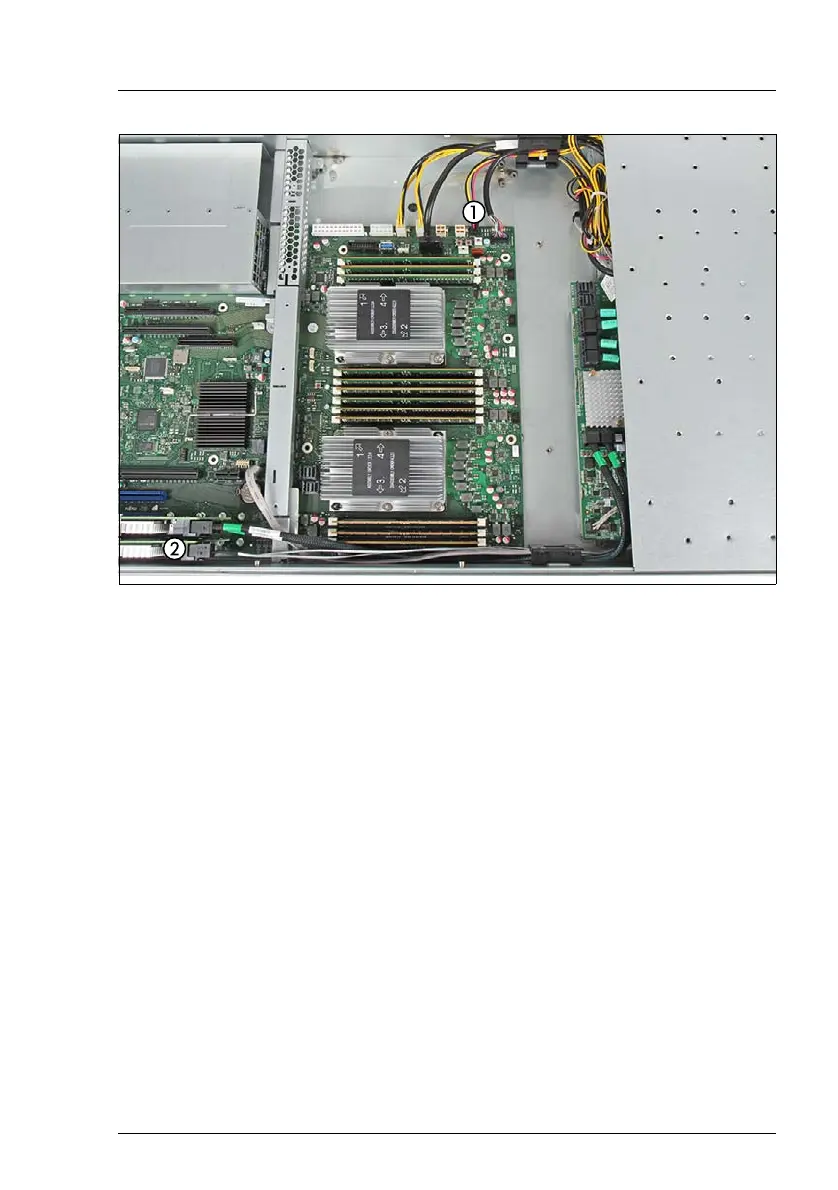

Figure 195: Connecting the cables to the system board and PSAS controller
Ê Connect the plugs of the LTO PWR/SAS cable C38:
– (1) Power plug to connector "PWR ODD" on the system board.
– (2) SAS plug to connector "MLC1" on the PSAS controller in slot 1.
12.4.1.4 Concluding steps
Ê "Installing the fan holder" on page 64
Ê "Reassembling" on page 55
Ê "Connecting the power cord" on page 59
Ê "Switching on the server" on page 60
Ê "Resuming BitLocker functionality" on page 89
