292 Upgrade and Maintenance Manual
RX2520 M4
V CAUTION!
Only for installations with LTO drive:
The front of the front panel is not flat with the housing of the server
because the drive is too long.
Ê Push in the front panel cage until it is engaged firmly (1).
Ê Fasten the front panel cage with one screw (2).
Connecting the LTO-drive
I For the cable plan, see chapter "Appendix B" on page 411.

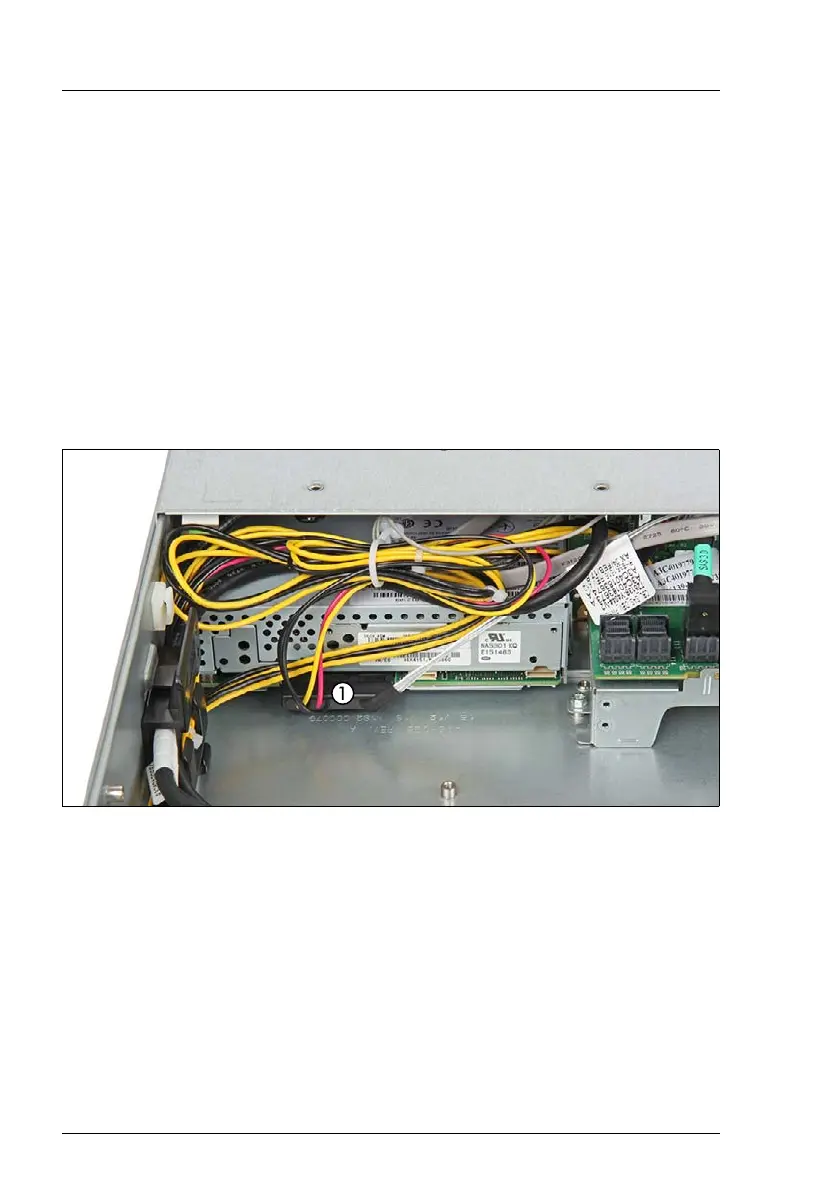

Figure 194: Connecting the cable to the LTO drive
Ê Connect the LTO PWR/SAS cable C38 to the LTO drive (1).
