378 Upgrade and Maintenance Manual
RX2520 M4
System board and components
Ê Disconnect the cables from the Dual microSD 64GB Enterprise (see figure
263 on page 374).

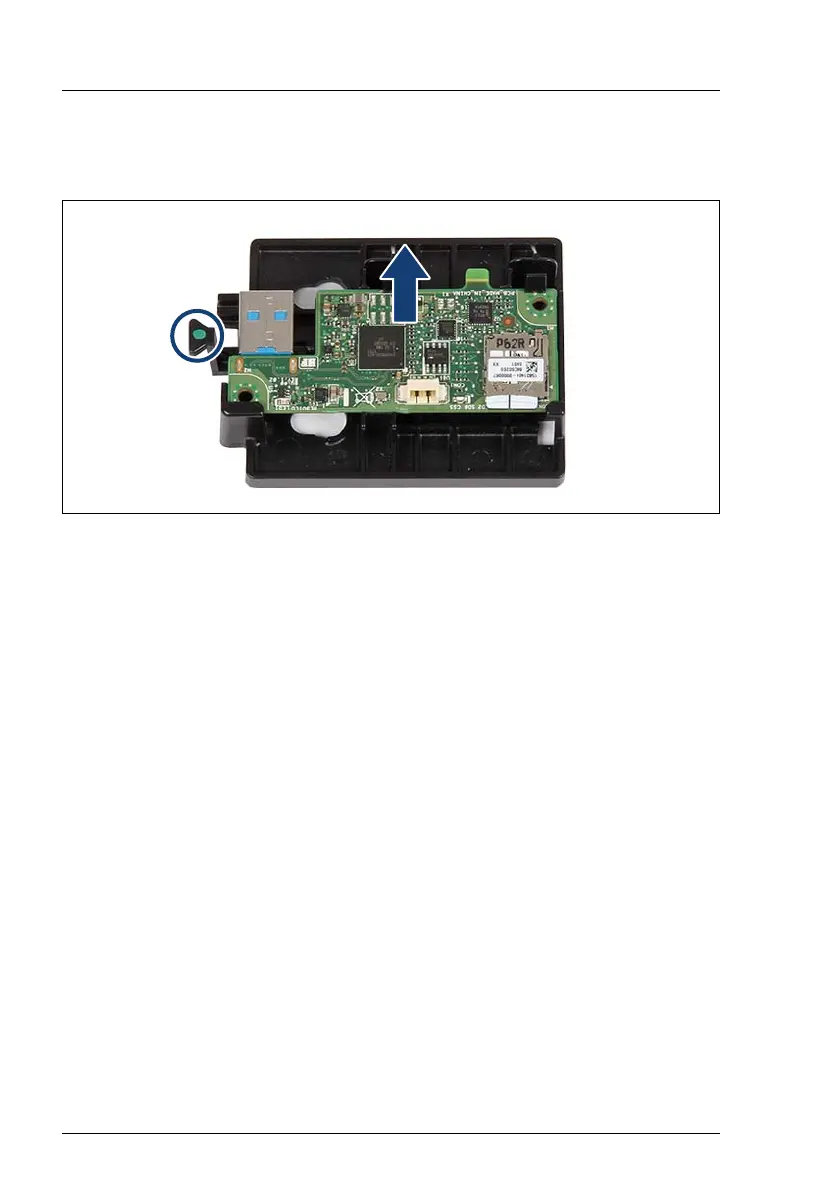

Figure 268: Removing the Dual microSD 64GB Enterprise from the holder
Ê Push on the green locking handle (see circle) and remove the Dual microSD
64GB Enterprise in a slight angle from the holder (see arrow).
15.6.2.3 Concluding steps
Ê "Installing the air duct" on page 62
Ê "Reassembling" on page 55
Ê "Connecting the power cord" on page 59
Ê "Switching on the server" on page 60
